NEW PRODUCTS SHOWN AT SEMA 2025
At the SEMA show this year, we’ve unveiled two highly anticipated new products, expanding our powerful NEXUS ecosystem to new and popular platforms. Here at Racing Solutions, we have always loved the JZ platform and specialised in it for so long, we can't wait to provide our customers with expert advice and guidance on how easy this Nexus Rebel JZ will help you JZ swaps. Contact the sales team to be first in line to secure yours.

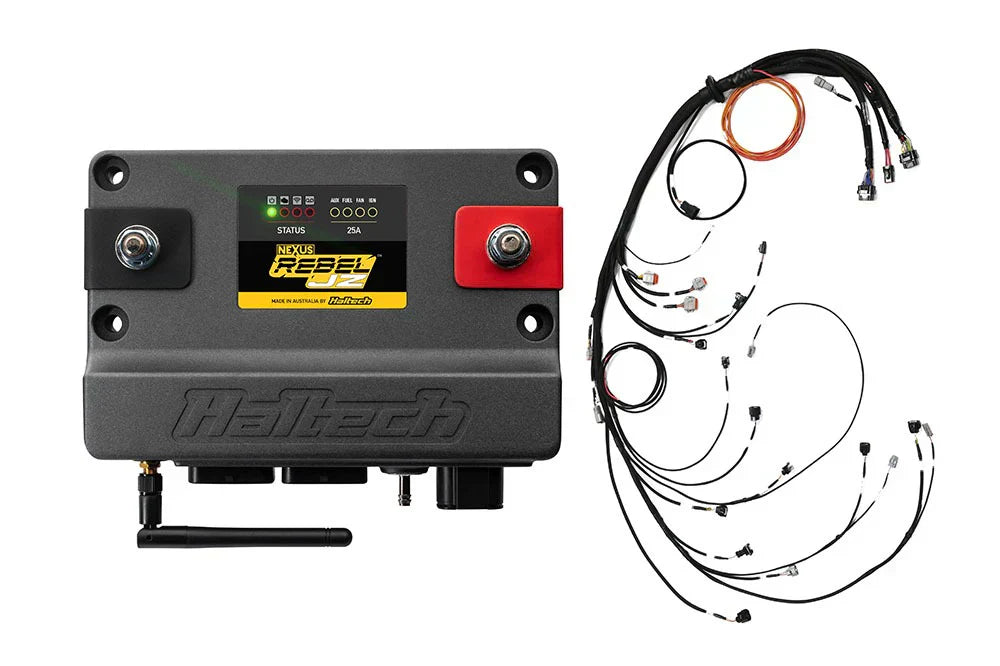

1. Nexus Rebel JZ
Racing Solutions are fans of Toyota’s bulletproof JZ platform and we have cause to celebrate, because Haltech is expanding their popular Rebel ECU + Harness packages to cover a range of Toyota 1J and 2J engines.
The best, quickest, and easiest way to get your Toyota JZ-swap up and running!
Designed from the ground up for the JZ engine platform, this ECU comes complete with an easy-to-install harness. Their new “Rebel JZ Set-up Wizard” in the Haltech Connect App and NSP software makes start-up a breeze, getting you running in record time.
Suits:
• 1JZ-GTE Non-VVT-i
• 1JZ-GE VVT-i
• 1JZ-GTE VVT-i
• 2JZ-GTE Non-VVT-i
• 2JZ-GE VVT-i
• 2JZ-GTE VVT-i
Technical Features:
• Wireless Connectivity: Built-in Wi-Fi and Bluetooth (BLE) for easy wireless tuning.
• Haltech CAN: Dedicated Haltech CAN channel for seamless integration with Haltech dashes, PDMs, and accessories.
• Onboard Datalogging: 32MB of internal memory.
Engine Control:
• Injector Outputs: Full sequential, single stage (high impedance only).
• Ignition Outputs: Full sequential, direct fire (falling edge only).
• Internal Wideband: Built-in single controller (supports Bosch LSU 4.9 only).
Inputs & Outputs (I/O):
• High Current Outputs (HCO): 4 total (3x 25-Amp outputs pre-configured for high-draw devices like your fuel pump, fan, and starter, 1x user definable)
• High Bridge Outputs (HBO): 4x fixed-function outputs for Drive-By-Wire (DBW) or IAC stepper motor control.
• Analogue Inputs (AVI): 11 total (8 fixed function, 3 user definable).
• Synchronised Inputs (SPI): 6 total (4 fixed for transmission, 2 user definable).
• Digital Pulsed Outputs (DPO): 6 total (1 fixed function, 5 user definable).
With the Nexus Rebel JZ, all the hard work is done. It is the new benchmark for JZ engine control. Goleby's Parts will have these in stock when we can.
What’s in the box?
HT-220205 – Nexus Rebel JZ Kit Includes:
1/8BSPT male to 1/8NPT female adapter (Oil pressure sensor fitting)
HT-220002 – Nexus Rebel JZ ECU
HT-186400 – Nexus Rebel JZ main terminated harness
HT-186120 – Denso Alternator Harness
HT-186121 – Bosch Alternator Harness
HT-186122 – Tundra Alternator Harness
HT-187005 – Toyota R154 transmission harness
HT-186160 – Nexus Rebel JZ cable throttle sub-harness
HT-186004 – i6 Timer (EV1) primary injector harness
HT-186063 – i6 R35 COP ignition harness
Bosch LSU 4.9 sensor and weld on bung
1/8 NPT air temperature sensor and weld on fitting
Bosch knock sensors (2 pcs)
Knock sensor stud adaptors (2 pcs)
Pricing and Availability coming Quarter 1 2026
2. Ti6L
The Ti6L unit allows easy control for GM’s popular 6L series of automatic transmissions. Designed as an expansion module for the NEXUS ECU and VCU range the Ti6L will be programmed via our NSP software, or Rebel LS users will be able to follow the simple set up wizard in the Haltech Connect App.
Features:
- Plug and play with Nexus Rebel LS terminated harness
- Easy setup wizard for Rebel LS ECU
- Programmed and Setup via NSP Software or Haltech Connect App
Supported Transmissions:
6L80 running a compatible OS version
6L90 running a compatible OS version
Pricing and Availability coming Quarter 1 2026
