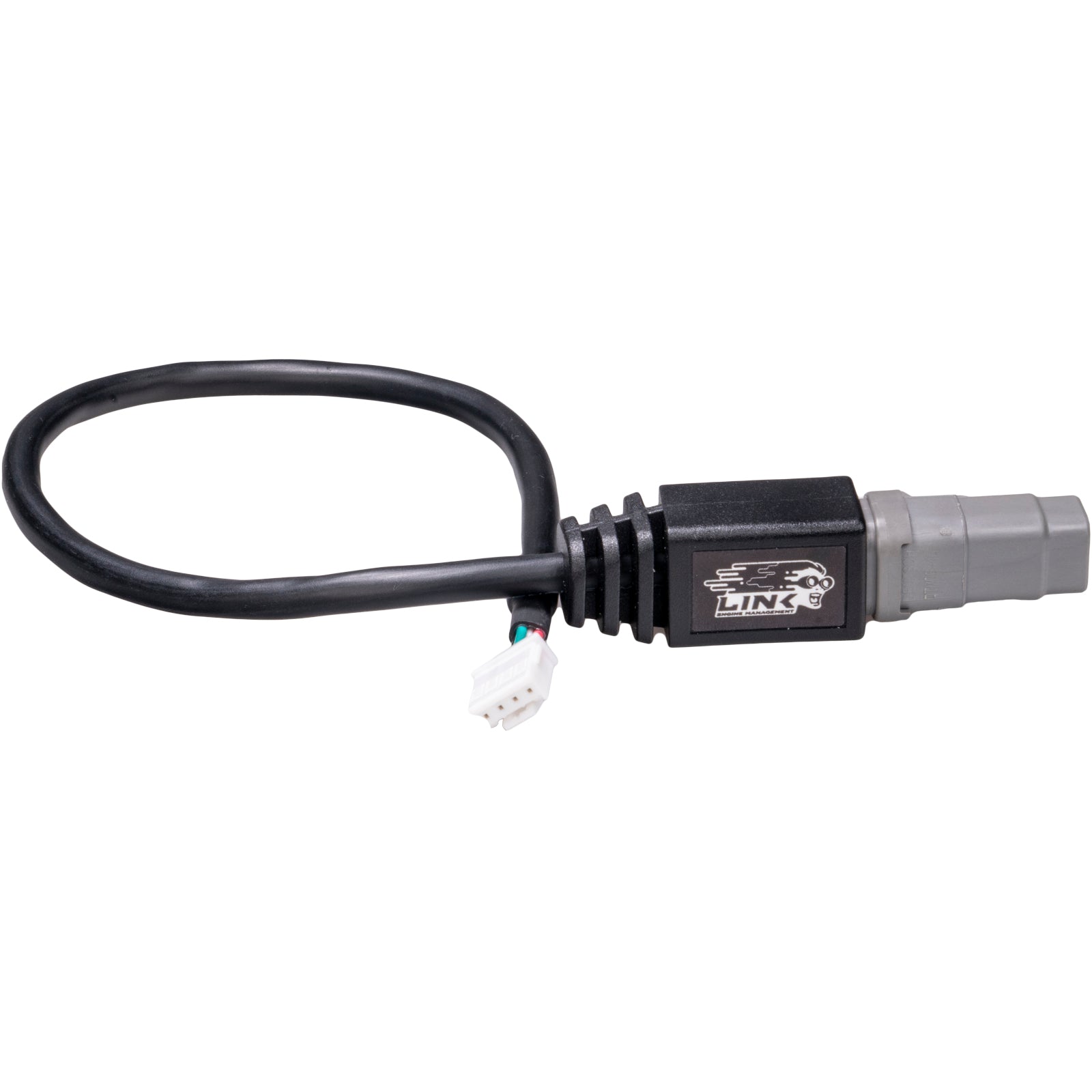

CANJST4 - CAN Connection Cable for Plugin ECU's (4pin)

CANJST4 - CAN Connection Cable for Plugin ECU's (4pin)

Regular price $56.10 AUD
Regular price Sale price $56.10 AUD
Sale Sold out
Shipping calculated at checkout.

    Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector).  Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories.

    Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.

    Note: there are two versions of this cable; both function the same.

    Compatible PlugIns:
    233-4000 - PlugIn ECU G4X Honda S2000 AP1
    228-4000 - PlugIn ECU G4X Subaru WRX V5-6
    235-4000 - PlugIn ECU G4X Toyota JZX90X
    237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX
    238-4000 - Plugin ECU G4X Subaru WRX11
    239-4000 - Plugin ECU G4X MX5NB2X
    240-4000 - Plugin ECU G4X MX5NB1X

    DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm

    DTM4 Pin Out
    Pin 4: CAN H
    Pin 3: CAN L
    Pin 2: Ground
    Pin 1: 12V
