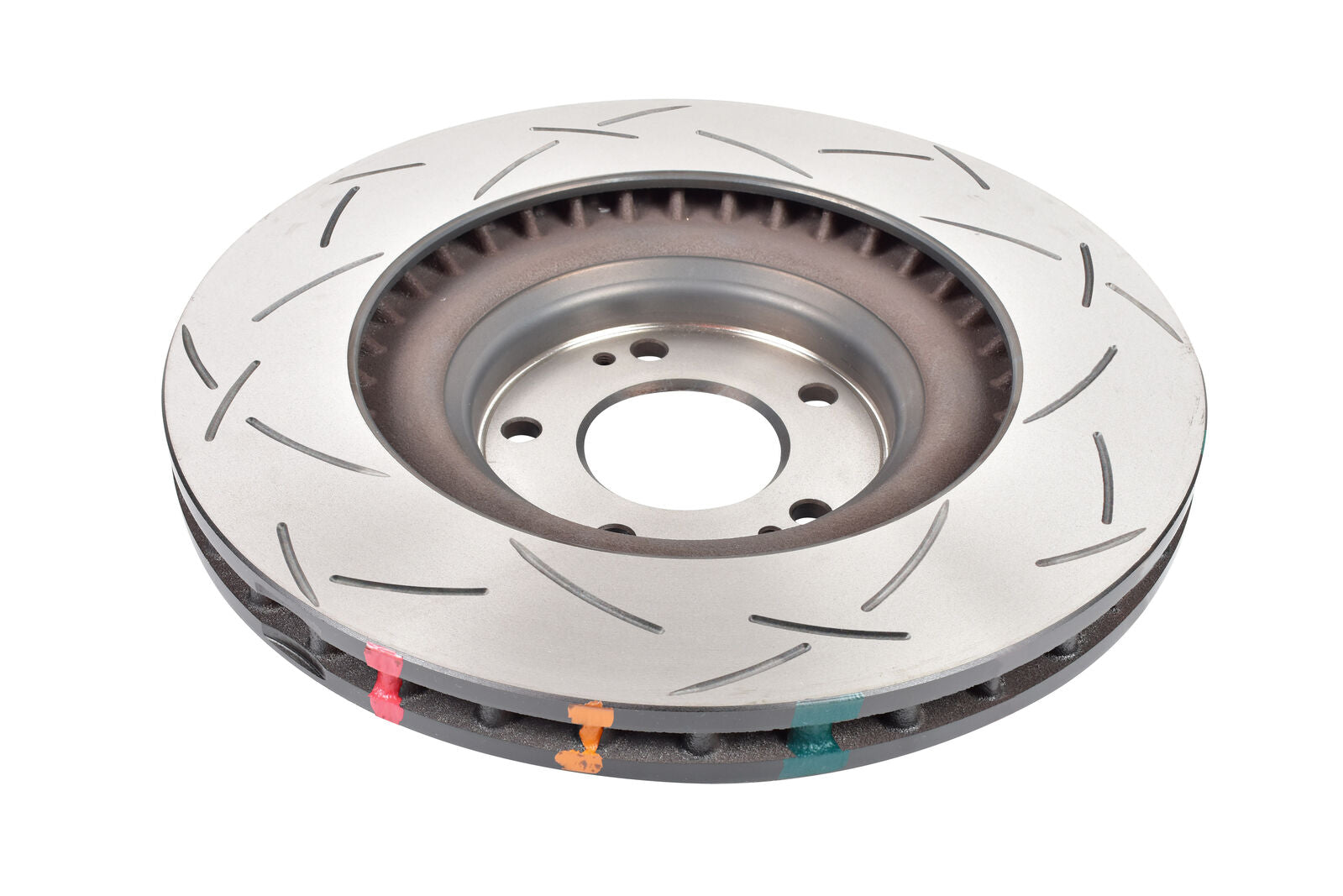

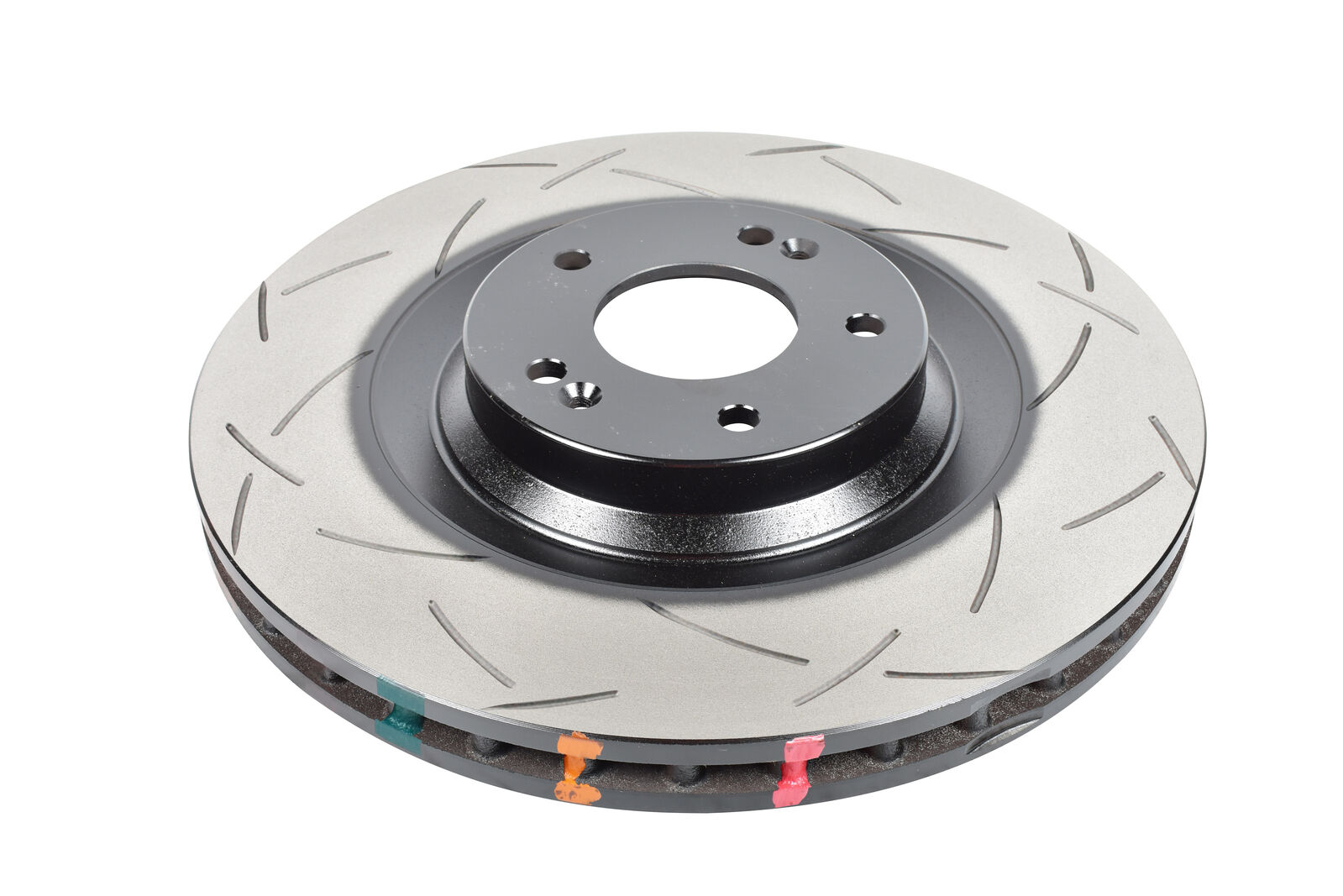

DBA Hyundai i30N Front Discs 345mm 4000 Series T3 - DBA43146S
DBA Hyundai i30N Front Discs 345mm 4000 Series T3 - DBA43146S
SKU:
Couldn't load pickup availability
DBA Hyundai i30N Front Discs 345mm 4000 Series T3 - DBA43146S.
PRICE IS FOR 1 PAIR OF ROTORS
In stock items at DBA distribution centre. Handling time 1-4 days. If sold out - check with us for backorder lead time.
Technical Specs
| Product SubVariant | T3 |
|---|---|
| Axle | Front |
| Outer diameter[mm] | 345 |
| Height [mm] | 52.3 |
| Brake Disc Thickness [mm] | 30 |
| Minimum Thickness [mm] | 28 |
| Centering Diameter [mm] | 69 |
| Number of Holes | 5 |
| Pitch Circle Ć | 114.30 |
| Uom | Each |
| Surface Design | Slotted |
Ā
4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded performance braking above and beyond standard OE levels.
Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBAs metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.
Featuring DBAs Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).
SURFACE DESIGNĀ
Symmetrical slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
ANTI RUSTĀ
Painted non friction areas to prevent rust and enhance appearance.
BI DIRECTIONAL USEĀ
Symmetrical slotting and/or drilling for universal left/right use.
THERMAL STABILITY PROFILING
Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability.
THERMAL EFFICIENCYĀ
Centre split core castings for increased heat transfer and thermal efficiency.
CBNĀ
CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad Ā??knockĀ?Ā and resulting premature wear.
THERMOGRAPHIC HEAT PAINT
Paint markings change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
HIGH CARBON ALLOYED IRONĀ
Formulation allows for optimal interaction with DBAĀ??s thermal stability profiling (TSP). Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.
KANGAROO PAWĀ
Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.
*Some variants may not contain all features
