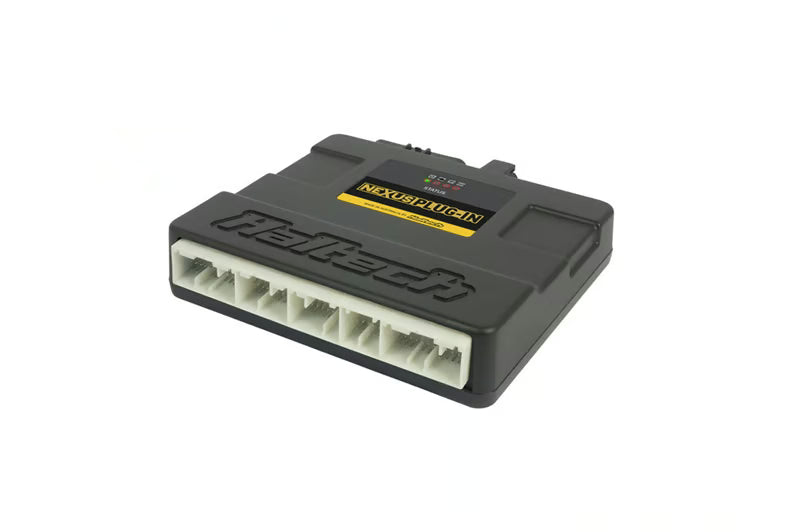

• Haltech HT-231001 Nexus Plug-in ECU for Honda EP3 and Integra DC5 - front angle view
  • Haltech HT-231001 Nexus Plug-in ECU connector pins - factory plug-in fitment

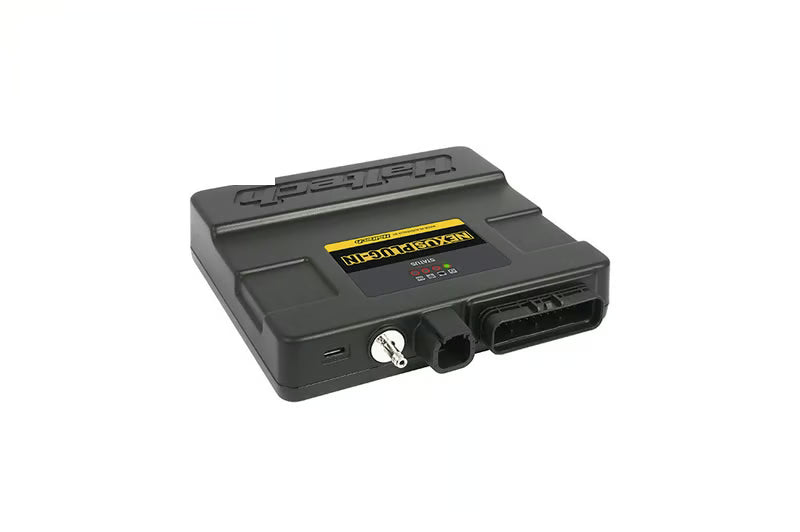

  • Haltech HT-231001 Nexus Plug-in ECU showing USB-C port and auxiliary connector
1 3

Haltech HT-231011 Nexus Plug-In ECU – Honda Integra / Acura RSX DC5 (05-06)

Haltech HT-231011 Nexus Plug-In ECU – Honda Integra / Acura RSX DC5 (05-06)

HT-231011

$2,350.00 AUD
$2,350.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Authorised Haltech dealer
  • Fast Shipping Australia Wide
  • Real fitment advice

Haltech HT-231011 Nexus Plug-In ECU for Honda Integra / Acura RSX DC5 (05-06)

The Haltech HT-231011 Nexus Plug-In ECU plugs directly into your factory DC5 Integra/RSX (05-06) wiring harness and sits neatly in the factory ECU location — no rewiring required. It fully supports vital OEM functions while unlocking modern standalone engine management, wireless Wi-Fi tuning via the Haltech Connect App, and serious race-focused functionality.

Vehicle Compatibility

  • Honda Integra / Acura RSX DC5 (2005–2006)

Supports manual transmissions only – factory 5 or 6 speed manual.

Key Features

  • Drive By Wire throttle support
  • Single channel onboard wideband control (supports LSU4.9/NTK)
  • Built-in Wi-Fi for wireless tuning and diagnostics
  • 4-channel onboard oscilloscope
  • 128MB onboard data logging
  • Flex Fuel compatible
  • Closed loop O2 control
  • Knock control
  • Long term fuel and ignition learning

OEM Plus & Race Functionality (via Auxiliary Connector)

  • O2 control, Flex Fuel, oil pressure and fuel pressure sensing
  • CO2 boost control
  • Race timer
  • Advanced torque management
  • Launch control
  • Nitrous control
  • 2 x half bridge outputs, 4 x digital pulsed outputs, 4 x synchronised pulsed inputs
  • 1 x onboard wideband, 2 x sensor ground, 2 x 12V output, 2 x 5V output

What's Included

  • Nexus Plug-In ECU
  • Air temperature + wideband expansion harness, 2.5m (8')
  • Air temperature sensor (1/8" NPT)
  • Aluminium bung for air temperature sensor
  • Mounting brackets and hardware
  • 2.5m vacuum hose and T-piece
  • Haltech USB-C cable
  • Quick start guide

Supported OEM Functionality

  • VTEC solenoid
  • VTC solenoid
  • IMRC (dual intake runner system)
  • Serial communication with the Multiplex Control Unit
  • Coolant temperature display (dash)
  • Battery warning light (dash)
  • A/C request signal (climate control)
  • Serial communication with the immobiliser

Why Upgrade to the Nexus Plug-In ECU?

Rather than stripping out your factory harness, the Nexus Plug-In ECU drops straight into the OEM connector and location on your DC5, giving you a clean, reliable install with the tuning depth of a full standalone ECU. It's a genuine step up from the ageing factory Honda ECU for street, track, and drift-focused K-series and Honda builds.

Frequently Asked Questions

Is this the same as the HT-231001?
No – the HT-231011 is specific to the 2005-2006 DC5 Integra/RSX, which uses a different factory ECU connector to the 2002-2004 model covered by the HT-231001.

Does it support automatic transmissions?
No, this ECU supports manual transmissions only (factory 5 or 6 speed).

Can I tune it without a laptop?
Yes – it connects via Wi-Fi to the Haltech Connect App for setup, tuning, and live monitoring from a smartphone, as well as NSP software.

When will this be available?
This is a pre-sale item, expected to ship mid-July 2026.
