NEXUS R5 + Universal Wire-in Harness Kit

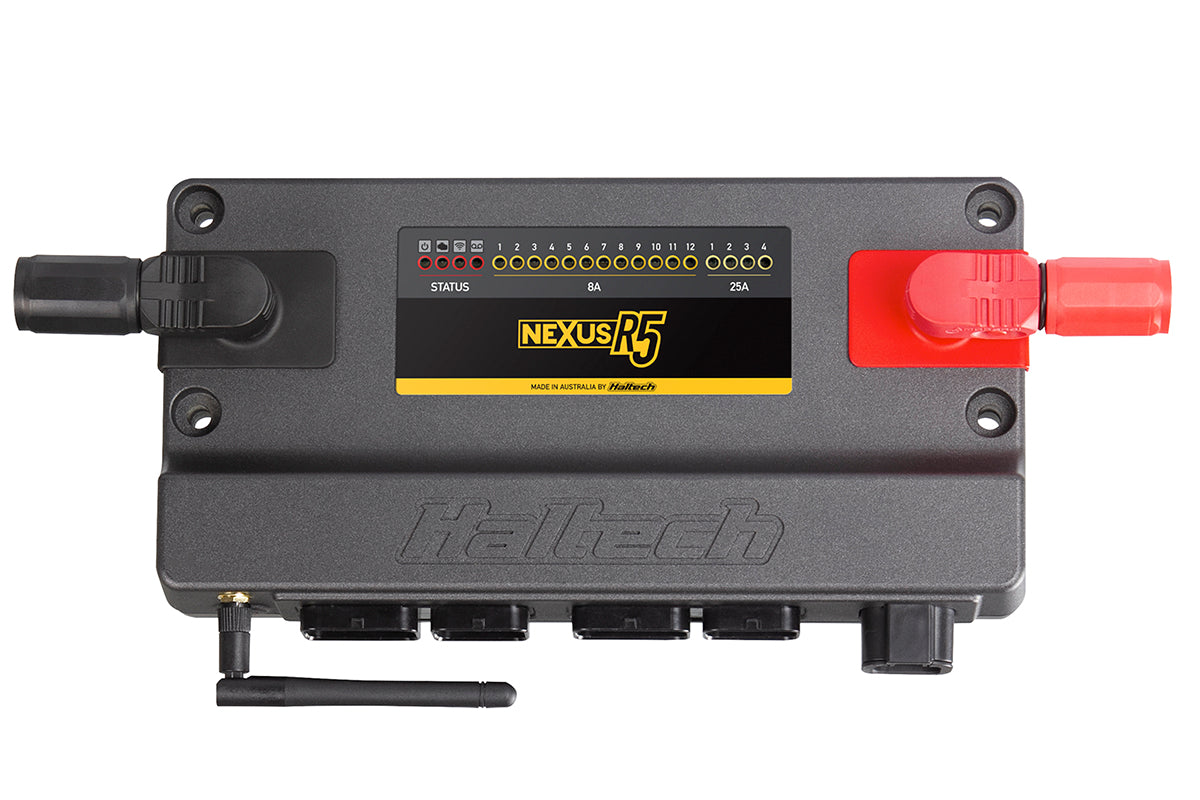

Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the-art engine management system in one powerful device — a VCU (Vehicle Control Unit).

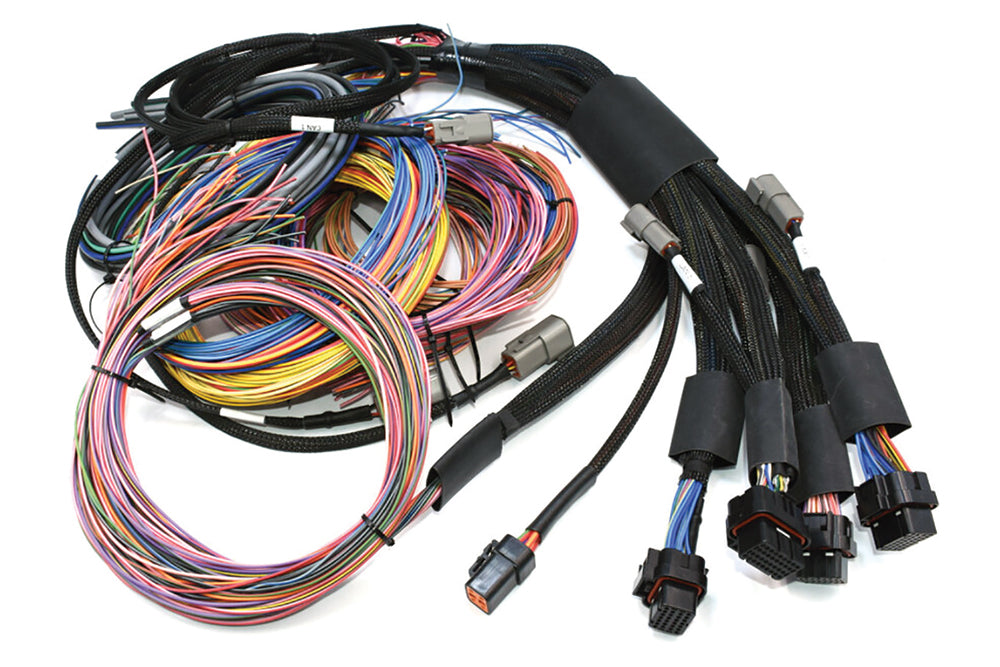

Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other. All wires at the unterminated end are colour coded and clearly labelled — connect your Haltech ECU, follow your wiring diagram for the engine connections, load your base map and you're ready to go. The wiring diagram is accompanied by the full VCU manual and software on the USB key provided, or downloadable from the Haltech website.
Length: 2.5m (8'). Suits: racing applications where advanced race features, data logging and power management control is required.

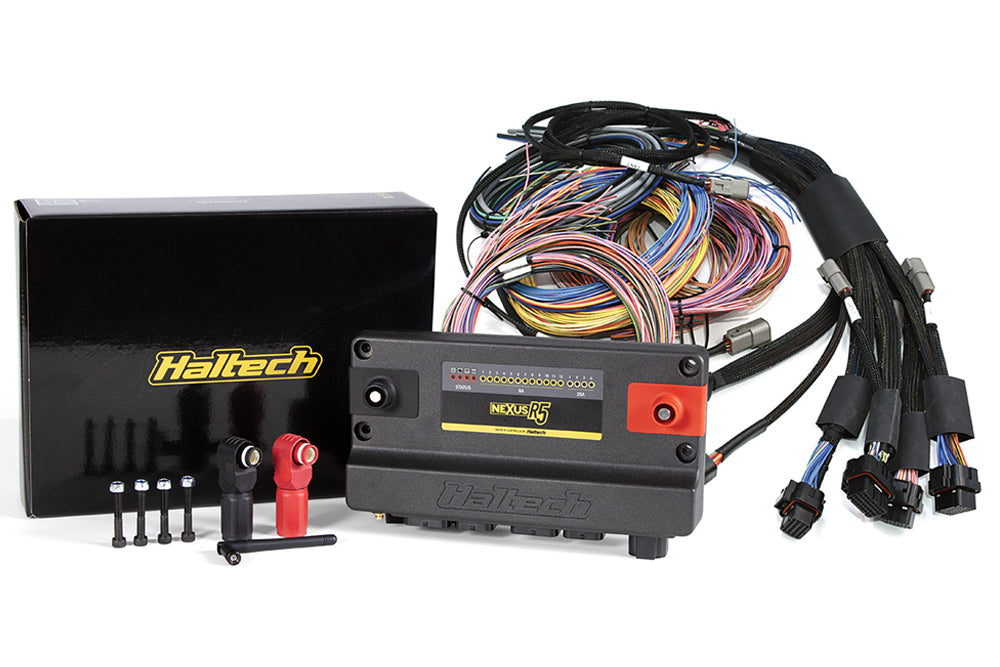

Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C cable, USB-C dust cap, plug and pin set (AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4), NEXUS R5 universal engine wiring harness with fire wall grommet 2.5in (63.5mm).
Key VCU features: 4 x 25A (continuous) push-pull PWM outputs (injectors/coils/transbrake/thermofan/fuel pump); 12 x 8A high side outputs; 18 x peak/hold injector drivers; 12 x low current ignition outputs; 8 x low side PWM drive outputs (DPOs); 4 x push-pull/h-bridge outputs (8A, PWM) for electronic throttle; 23 x 0-5V analog inputs with redundancy; 2 x onboard wideband controllers (NTK/LSU4.9); 3 x CAN ports with switchable termination; onboard data logging up to 300 channels at sample rates up to 1ms (1kHz) with 512MB internal memory.
