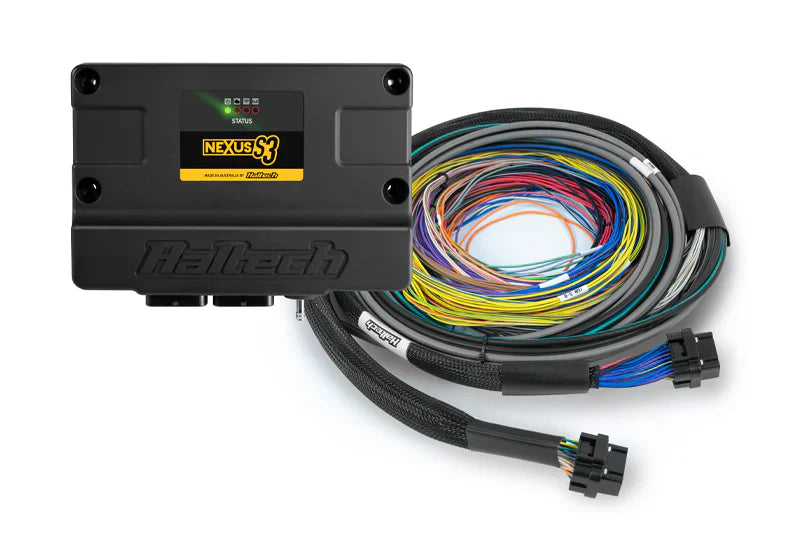

Nexus S3 ECU + Universal Wire-in Harness - 2.5m (8')
Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.

Harness: Ideal for modified street cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other, all colour coded and clearly labelled to match the detailed wiring diagram for a confusion-free installation. Connect your Haltech ECU, follow the wiring diagram for all engine connections, load your base map and you're ready to go.

Includes: Nexus S3 ECU, 2.5m (8') Universal Wire-in Harness with colour-coded, labelled wiring, quick start guide. Full manual and NSP software available for download from the Haltech website.

Key ECU features:

  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A, PWM capable), e.g. for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor, frequency or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
  • Onboard data logging: up to 300 channels at sample rates up to 1ms (1kHz) with 128MB of internal memory
View full details
