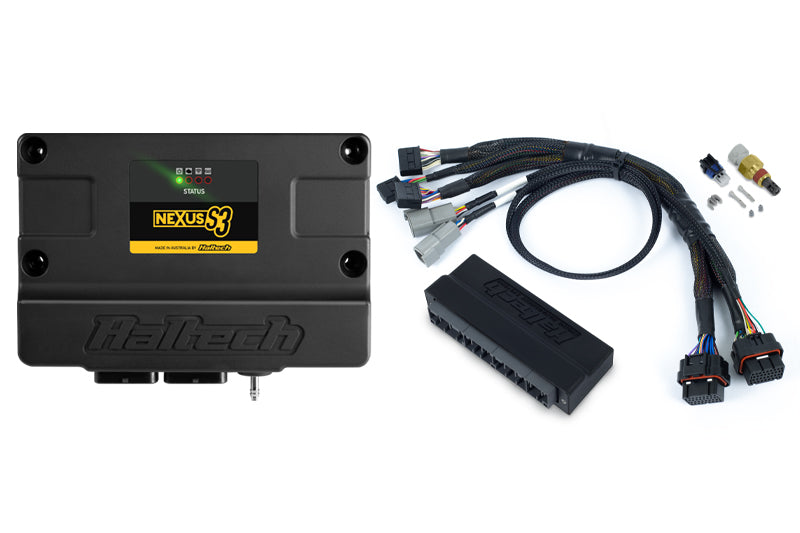

Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Honda S2000 (AP1 / AP2 )

Nexus S3 Plug 'n' Play Adapter Harness Kit - Honda S2000 (AP1 / AP2)
Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality — combining the classic functionality of the Elite 2500 with the superior processing power of the Nexus platform.

Suits: Plug 'n' Play replacement of the factory ECU for Honda S2000 AP1 (00-04), AP2 (05), Non-DBW.

Includes: Injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Non Drive-By-Wire (DBW) application only.

Key ECU features: 8 x peak/hold injector drivers; 8 x low current ignition outputs; 6 x low side PWM drive outputs (DPOs); 4 x push-pull/half bridge outputs (8A, PWM) for electronic throttle; 1 x ECR output; 11 x 0-5V analog inputs with redundancy; 1 x onboard wideband controller (NTK/LSU4.9); 1 x onboard 4 bar MAP sensor; 2 x CAN ports with switchable termination; onboard data logging up to 300 channels at 1ms (1kHz) with 128MB internal memory. This is a genuine Plug 'n' Play product — the adaptor plugs directly into your Haltech ECU and has factory connectors on the other side that plug straight into your factory harness, so you're up and running in a few hours.
