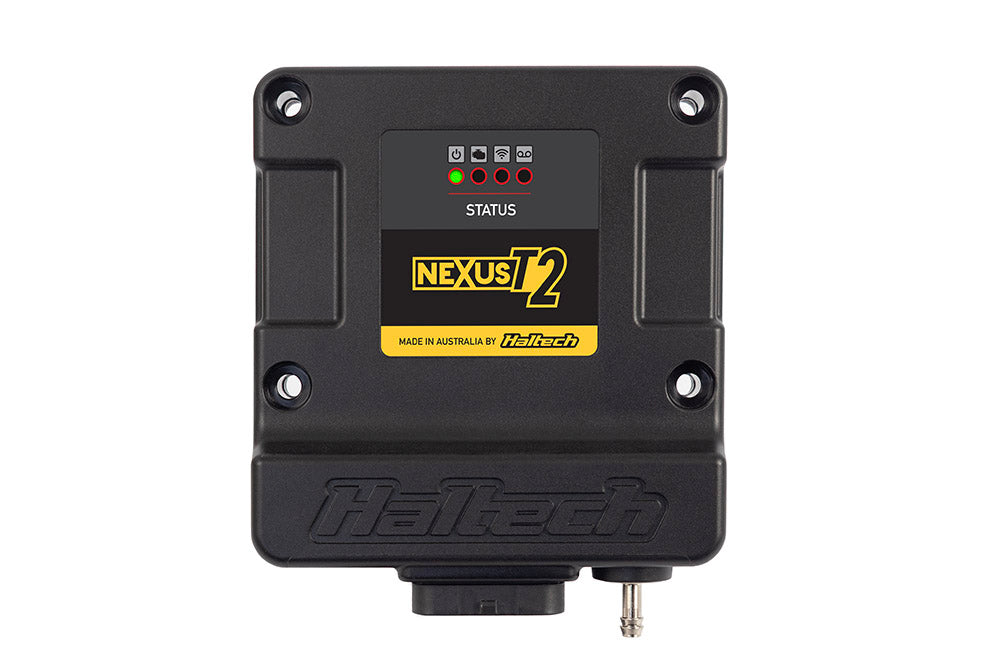

• Haltech Nexus T2 ECU HT-211000 front view showing status LEDs and sealed case

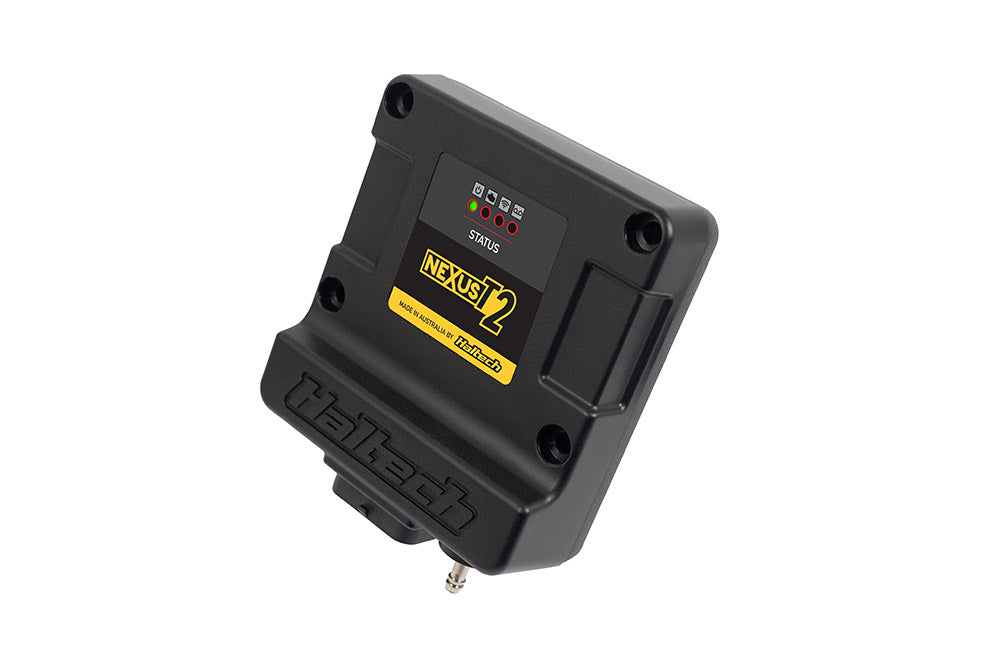

  • Haltech Nexus T2 ECU 34 position Superseal connector detail

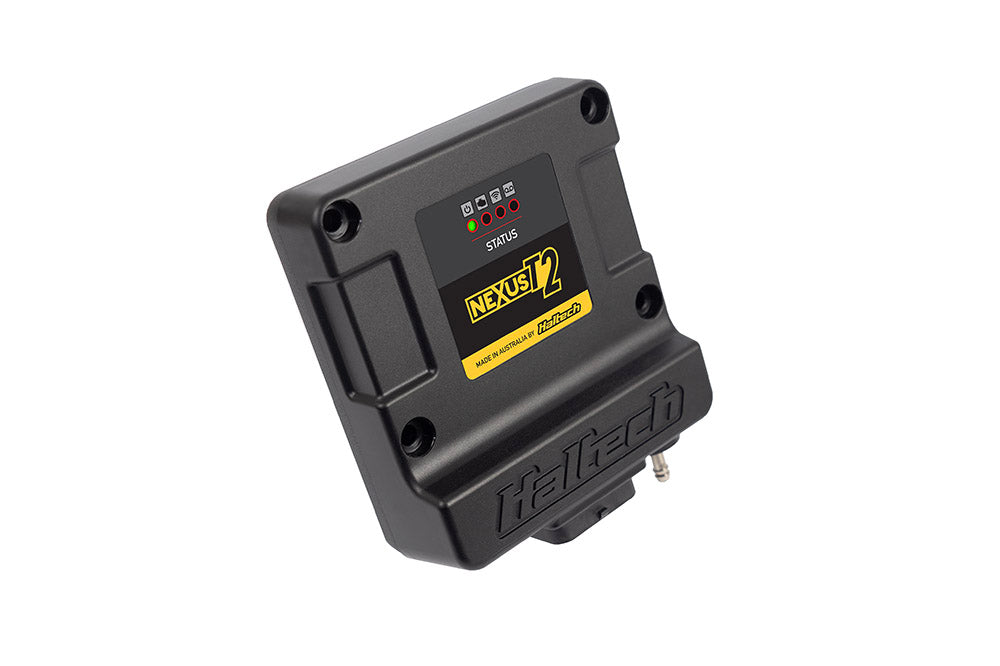

  • Haltech Nexus T2 ECU side profile showing waterproof IP-66 enclosure

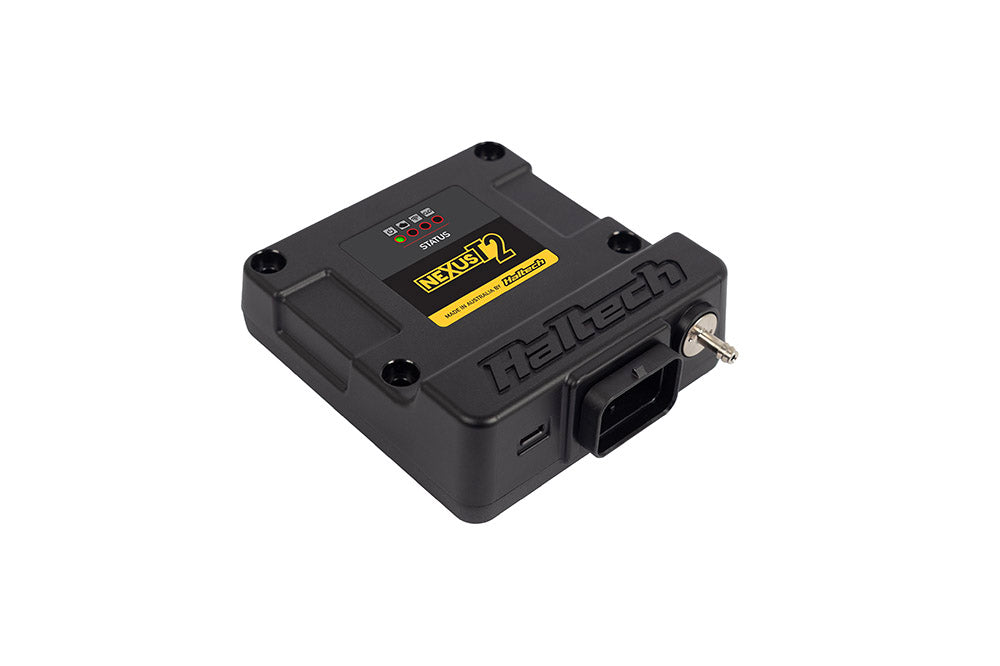

  • Haltech Nexus T2 ECU rear view with mounting points

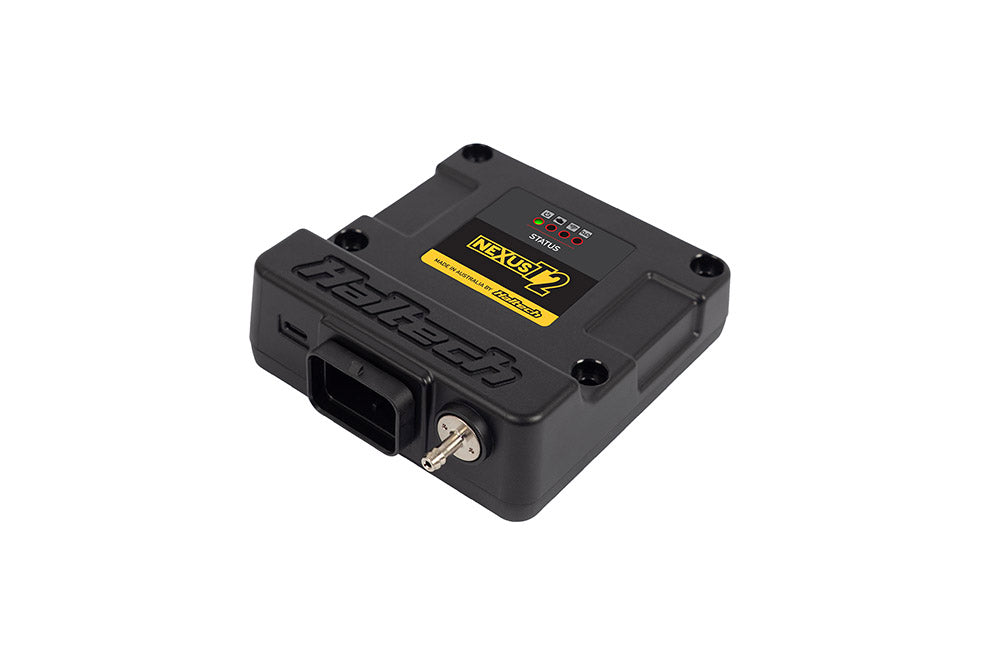

  • Haltech Nexus T2 ECU USB-C communication port

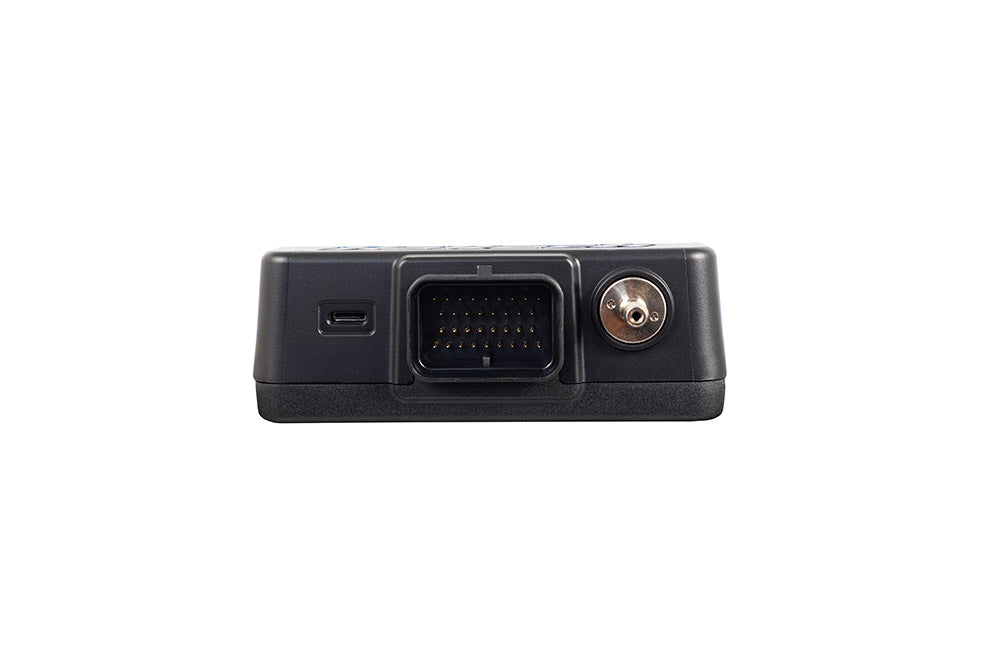

  • Haltech Nexus T2 ECU shown with supplied cable and mounting hardware
1 6

Haltech Nexus T2 ECU

Haltech Nexus T2 ECU

HT-211000

$1,625.00 AUD
$1,625.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Authorised Haltech dealer
  • Fast Shipping Australia Wide
  • Real fitment advice

The Nexus T2 is Haltech's entry-level stand-alone ECU and the direct successor to the Elite 750. It is built for street-performance builds and EFI conversions on 1-6 cylinder or 3 rotor engines, naturally aspirated or forced induction, giving you full control over fuel delivery, ignition timing and boost.

Everything runs through a single 34-position Superseal connector in an environmentally sealed IP-66 waterproof case, so it is happy mounted in the engine bay. An internal 4 Bar MAP sensor is built in, and the ECU comes fully enabled - there are no locked features or extra charges to unlock them.

Outputs and inputs

  • 6 x fuel injection outputs (peak and hold, 8A peak / 2A hold)
  • 6 x ignition outputs
  • 5 x digital pulsed outputs (DPO)
  • 5 x analog voltage inputs (AVI)
  • 2 x differential engine position inputs (trigger and home)
  • 1 x synchronised pulsed input, plus 1 knock input (usable as SPI 2)
  • Internal 4 Bar MAP sensor

Tuning and logging

  • Nexus Software Programmer (NSP) calibration software
  • 32MB onboard logging, plus laptop logging
  • 4-channel onboard oscilloscope (50kSa/s per channel)
  • Closed loop O2 control with long term learning (requires optional CAN wideband controller kit)
  • Closed loop boost control with learning, tune by gear or road speed
  • Flex fuel, launch control, traction control, anti-lag, trans brake and multi-level engine protection
  • Variable cam control for up to 2 camshafts
  • 4D tuning tables up to 32 x 32 x 8 with 3D per-cylinder correction

Connectivity

  • Wi-Fi via internal antenna, works with the Haltech Connect app
  • USB-C laptop communication (Windows)
  • CAN bus for Haltech dashes, expansion devices and OBDII

Specifications

  • Enclosure: 111 x 131 x 40 mm, not including connector protrusion
  • Power supply: 8 to 22V
  • Operating temperature: -40 to 125°C ambient
  • Weight: 0.39 kg

What's in the box

  • Nexus T2 ECU
  • USB-C cable and USB-C dust cap
  • Mounting bolt set
  • Haltech fabric keytag
  • Quick start guide and universal wiring diagram

A wire-in harness is not included. Pair the T2 with the Nexus T2 / T1 Basic or Premium Universal Wire-in Harness, or wire your own using the plug and pin set.

Running a four cylinder or two rotor? The Nexus T1 covers that at a lower price. Give us a call if you want a hand choosing.
