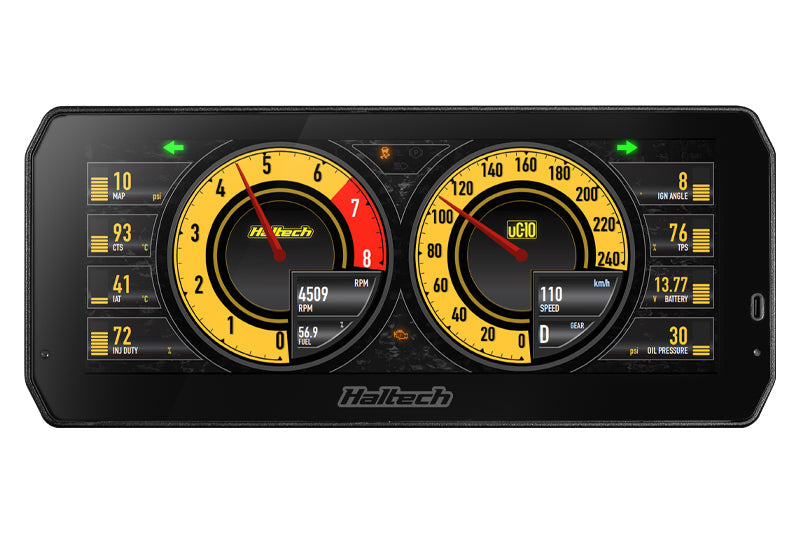

• Haltech uC-10 10-inch digital dash display front view showing race gauge layout – HT-068000

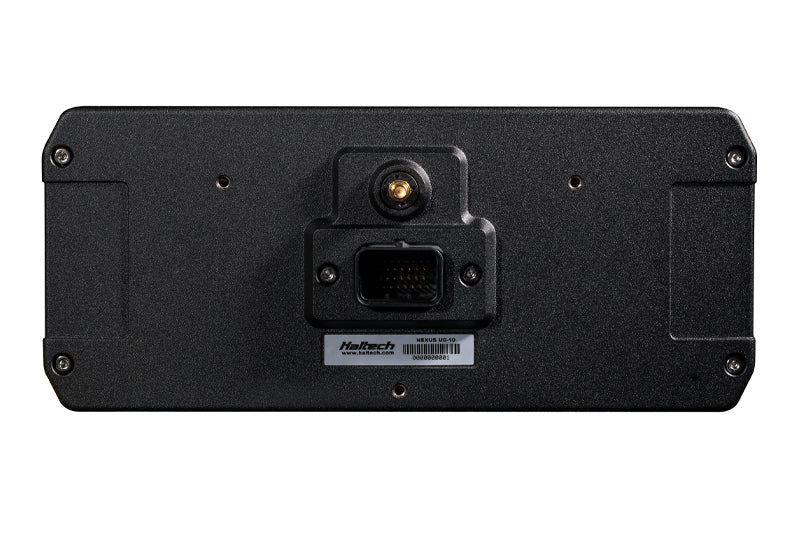

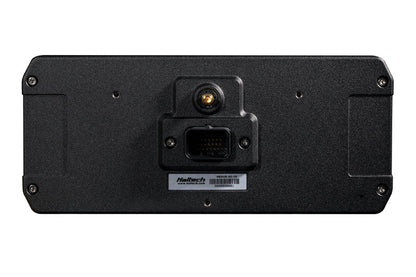

  • Rear of Haltech uC-10 digital dash showing 34-pin connector and mounting points

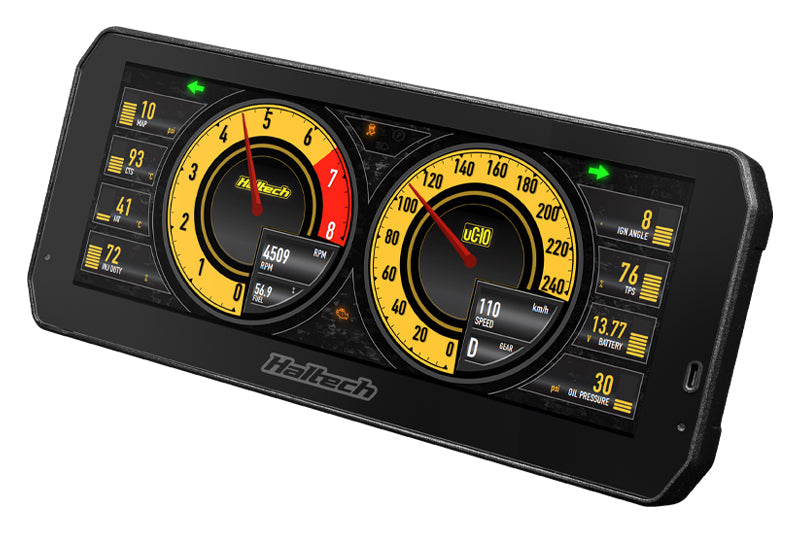

  • Haltech uC-10 digital dash angled profile view with slim casing

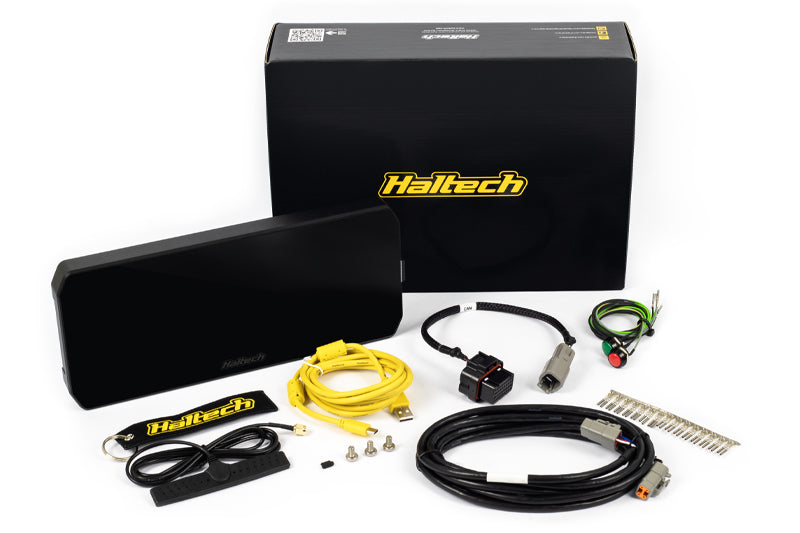

  • Haltech uC-10 dash kit contents including CAN cable, USB-C cable, Wi-Fi antenna and mounting hardware

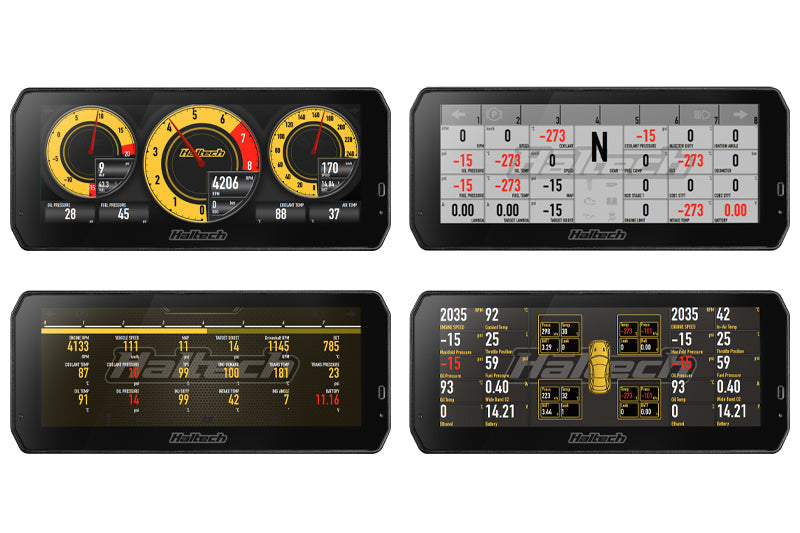

  • Haltech uC-10 display close-up showing configurable gauge screen layout
1 5

Haltech uC-10 Digital Dash Display

Haltech uC-10 Digital Dash Display

HT-068000

$2,850.00 AUD
$2,850.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Authorised Haltech dealer
  • Fast Shipping Australia Wide
  • Real fitment advice

Haltech uC-10 Digital Dash Display – HT-068000

The Haltech uC-10 is a premium 10-inch motorsport digital dash designed for street and race vehicles running Haltech or selected CAN-compatible aftermarket ECUs. With a crisp, configurable full-colour display, Wi-Fi connectivity and plug-and-play CAN integration, the uC-10 puts every critical engine parameter right in front of the driver – and it can even run as a complete standalone unit.

Compatibility

Connects to all current Haltech ECUs via CAN, and is Plug-and-Play compatible with selected aftermarket ECUs including Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 Series, MoTeC Hundred Series and Syvecs. Also supports OBD2 connection (adapter cable HT-135003 sold separately) and fully standalone operation using its own sensor inputs.

Key Features

  • Large 10-inch configurable full-colour display for street or race use
  • Native Haltech CAN support plus Plug-and-Play profiles for popular aftermarket ECUs
  • OBD2 compatible and standalone capable – also works as an I/O expander in a Haltech system
  • Onboard data logging
  • Wi-Fi connectivity with included glass-mount antenna
  • USB-C connection for setup and updates

What's Included

  • 1 x Haltech uC-10 Digital Dash
  • 34-pin connector
  • Haltech DTM-4 to DTM-4 CAN cable
  • USB-C cable
  • Mounting screws and switches
  • Glass-mount Wi-Fi antenna

Frequently Asked Questions

Will the uC-10 work with my non-Haltech ECU?
Yes – it offers Plug-and-Play support for selected Hondata, Link, MaxxECU, Microtech, MoTeC and Syvecs ECUs via CAN, plus OBD2 connection for late-model vehicles.

Can it run without an ECU?
Yes – the uC-10 can be wired in as a complete standalone unit with its own sensor and switch inputs.

Is the uC-10 suitable for street cars?
Absolutely. Configurable layouts make it equally at home in a daily-driven build or a dedicated race car.

View full details
  • Haltech uC-10 10-inch digital dash display front view showing race gauge layout – HT-068000
  • Rear of Haltech uC-10 digital dash showing 34-pin connector and mounting points
  • Haltech uC-10 digital dash angled profile view with slim casing
  • Haltech uC-10 dash kit contents including CAN cable, USB-C cable, Wi-Fi antenna and mounting hardware
  • Haltech uC-10 display close-up showing configurable gauge screen layout
