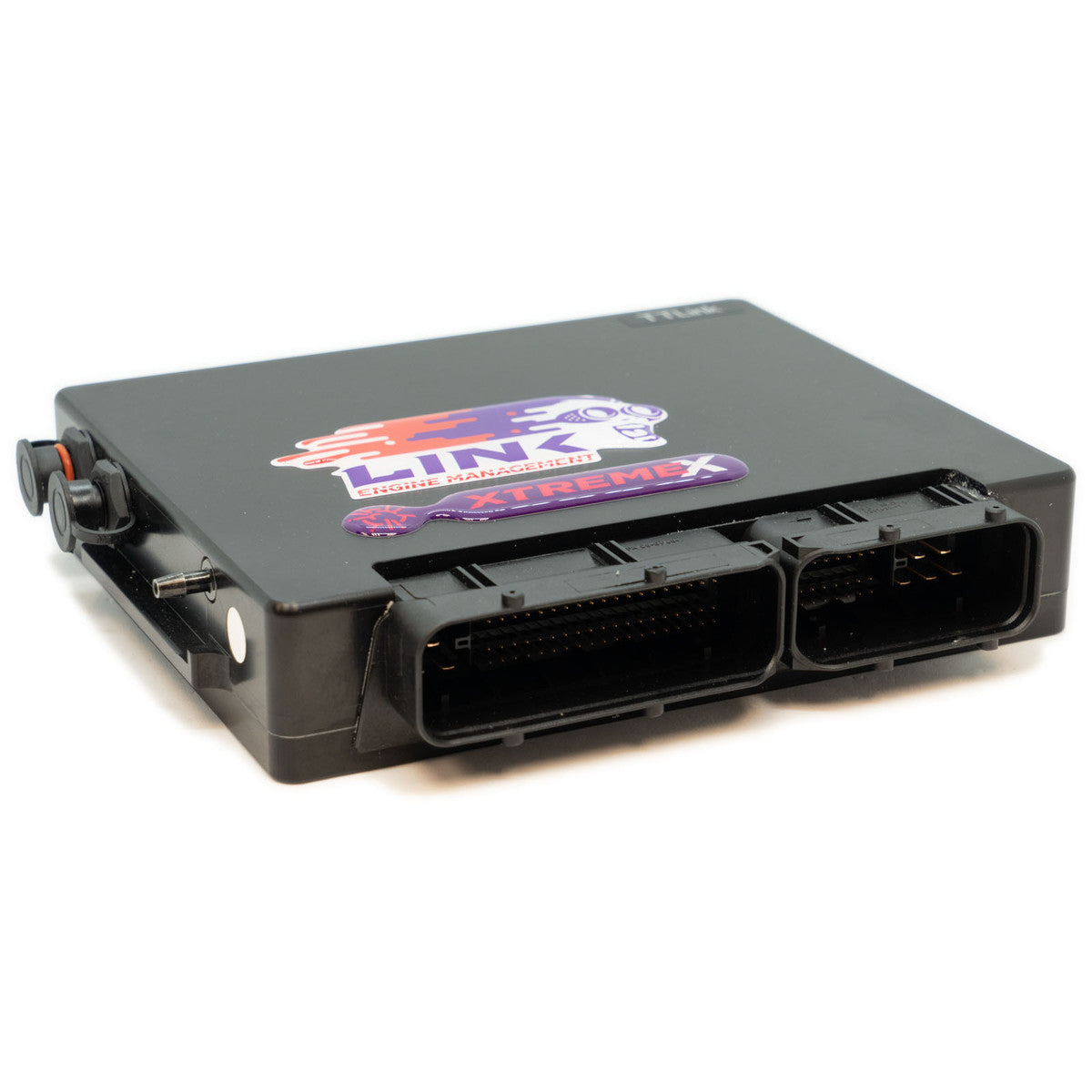

Link Plug In ECU - Audi TTLink - TTX

Link Plug In ECU - Audi TTLink - TTX

Regular price $2,300.00 AUD
Regular price Sale price $2,300.00 AUD
Sale Sold out
Shipping calculated at checkout.

    Easy to install. Affordable. Reliable.
    G4X PlugIn ECUs offer the latest in engine management technology, designed to maximize the potential from your car.
    This ECU fits in the factory OEM location. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

    The Link G4X ECU TTLink TTX PlugIn Designed for the VWAG PQ34 1.8l Turbo enginewith E-Throttle.


    • This ECU works with manual transmissions only.
    • Includes an onboard 4 bar or 7 bar MAP sensor.
    • Most factory features are supported.
    • Check the features tab for I/O expansion options
    • This PlugIn ECU is not compatible with the CANJST cables. To connect to the CAN use CANLTW (PN 101-0211) or CANF (PN 101-0020)


    Suitable applications:




    • Engine must be 1.8T
    • ECU header must have two connectors, 121 pin total
    • Must be Drive by Wire (E-throttle)
    • Must be manual transmission
    • FWD or 4WD (Haldex)





    The following vehicles are known to be compatible:



    Make

    Model

    Years

    Engine code

    Audi

    TT

    99-02

    AJQ

    VW

    Beetle

    2005

    AWU

    VW

    Passat

    2000



    VW

    Golf

    2001

    AUM



    The following vehicles are likely to be compatible with the ECU, but are untested:



    Make

    Model

    Years

    Engine code

    Audi

    A3

    98-00

    AJQ



    A3

    99-00

    APP



    A3

    99-01

    ARZ



    A3

    00-05

    ARX



    A3

    00-05

    ARY



    A3

    00-05

    AUM



    A3

    00-05

    AUQ



    A4

    98-00

    APU



    A4

    00-02

    AVJ



    A4

    00-02

    AWT



    A4

    02-03

    BEX



    A4

    04-07

    BFB



    A6

    98-00

    APU



    A6

    00-02

    AWT



    S3

    98-01

    APY



    S3

    00-05

    BAM



    S3

    02-03

    AMK



    TT

    98-00

    APX



    TT

    99-00

    APP



    TT

    99-02

    AJQ



    TT

    00-02

    AMU



    TT

    00-05

    ARX



    TT

    00-05

    ARY



    TT

    00-05

    AUM



    TT

    00-05

    AUQ



    TT

    00-05

    BAM



    TT

    00-06

    AWP



    TT

    05-06

    BFV



    TT

    05-06

    BVP



    TT

    05-06

    BVR









    Seat

    Alhambra

    00-04

    AWC



    Ibiza

    99-00

    AQX



    Ibiza

    00-01

    AYP



    Ibiza

    04-08

    BJX



    Ibiza

    05-08

    BBU



    Leon

    98-00

    AJQ



    Leon

    99-00

    APP



    Leon

    00-01

    AJQ



    Leon

    00-05

    ARY



    Leon

    00-05

    AUQ



    Leon

    00-05

    BAM



    Leon

    02-03

    AMK









    Skoda

    Octavia

    99-01

    ARZ



    Octavia

    00-05

    ARX



    Octavia

    00-05

    ARY



    Octavia

    00-05

    AUM



    Octavia

    00-05

    AUQ









    VW

    Bora

    00-05

    ARX



    Bora

    00-05

    ARY



    Bora

    00-05

    AUM



    Bora

    00-05

    AUQ



    Bora

    02-06

    AWP



    Golf

    99-01

    ARZ



    Golf

    00-05

    ARX



    Golf

    00-05

    ARY



    Golf

    00-05

    AUM



    Golf

    00-05

    AUQ



    Golf

    02

    AWP



    Golf

    02-06

    AWP



    Jetta

    01-09

    AWP



    New Beetle

    99-00

    APH



    New Beetle

    99-00

    AVC



    New Beetle

    02-04

    AWP



    Passat

    98-00

    APU



    Passat

    00-02

    AWT



    Polo

    04-08

    BJX



    Polo

    05

    AWP



    Polo

    05-08

    BBU



    Sharan

    00-04

    AWC



    Vehicles with the following engine codes are known not to be compatible:

    AEB, AGU, AJH, AJL

    G4X PlugIn Key Features (where applicable):

    • Up to 6D fuel and ignition mapping
    • Precision closed loop cam control (four cam, independent control)
    • Sequential fuel delivery
    • Digital triggering, all OEM patterns
    • OEM idle hardware supported
    • 5D boost control with three switchable tables
    • Motorsport features - antilag, launch, flat shift
    • Continuous barometric correction (on board)
    • CAN port
    • QuickTune - automated fuel tuning
    • Individual cylinder correction
    • USB tuning cable included
    • Stats recording into on-board memory
    • Gear compensations for spark, boost and fuel
    • Real time selectable dual fuel, ignition and boost maps
    • Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
    • Boost control referenced to gear, speed or throttle position
    • 512 mega bytes data logging memory
    • Staged injection
    • Knock with "windowing"



    I/O Expansion Options
    There is no separate expansion connector on the TT Link. Expansion pins are accessible through the main header, listed below.

    • Pin 110 - An Temp 3
    • Pin 111 - An Volt 10
    • Pin 112 - DI9
    • Pin 113 - Ign 6
