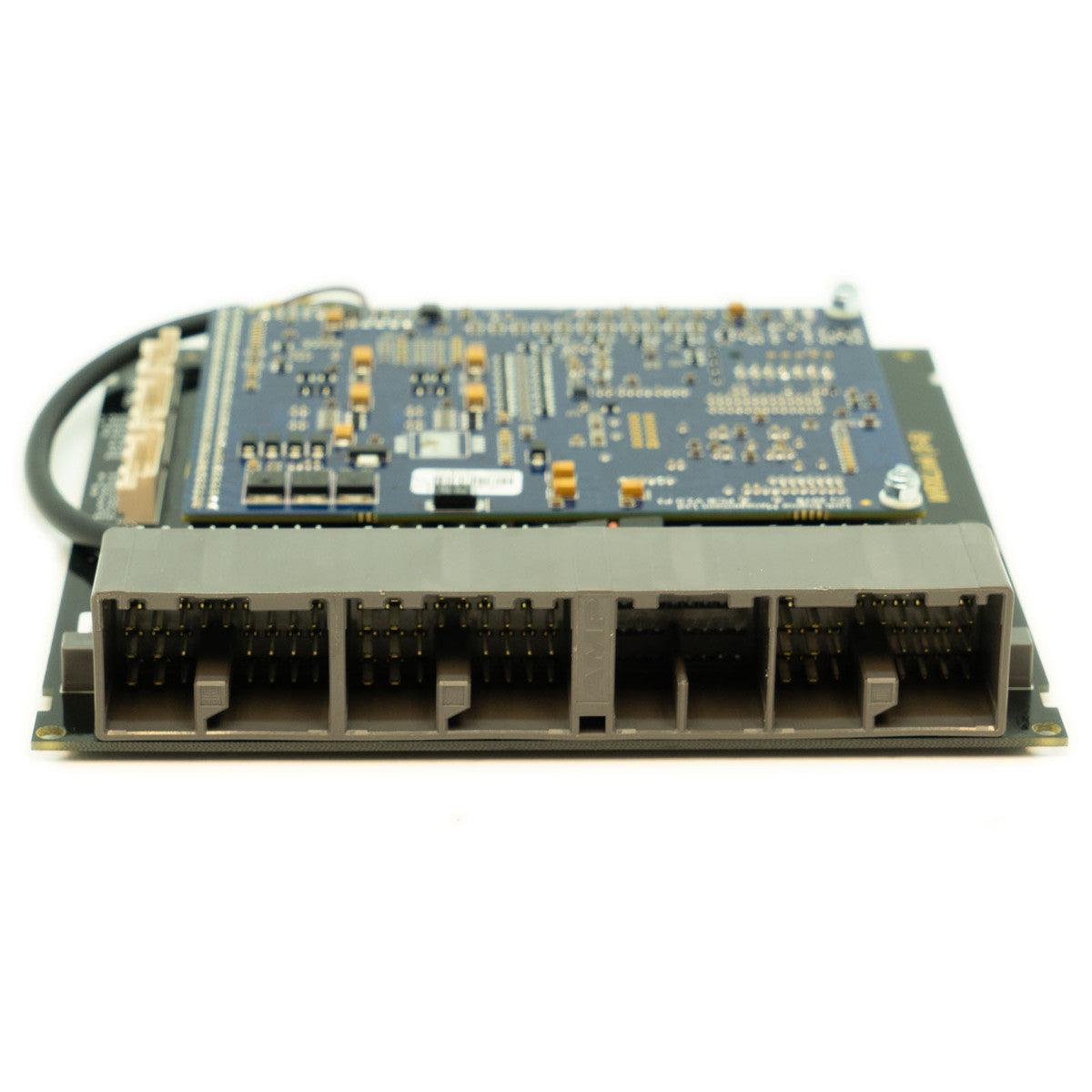

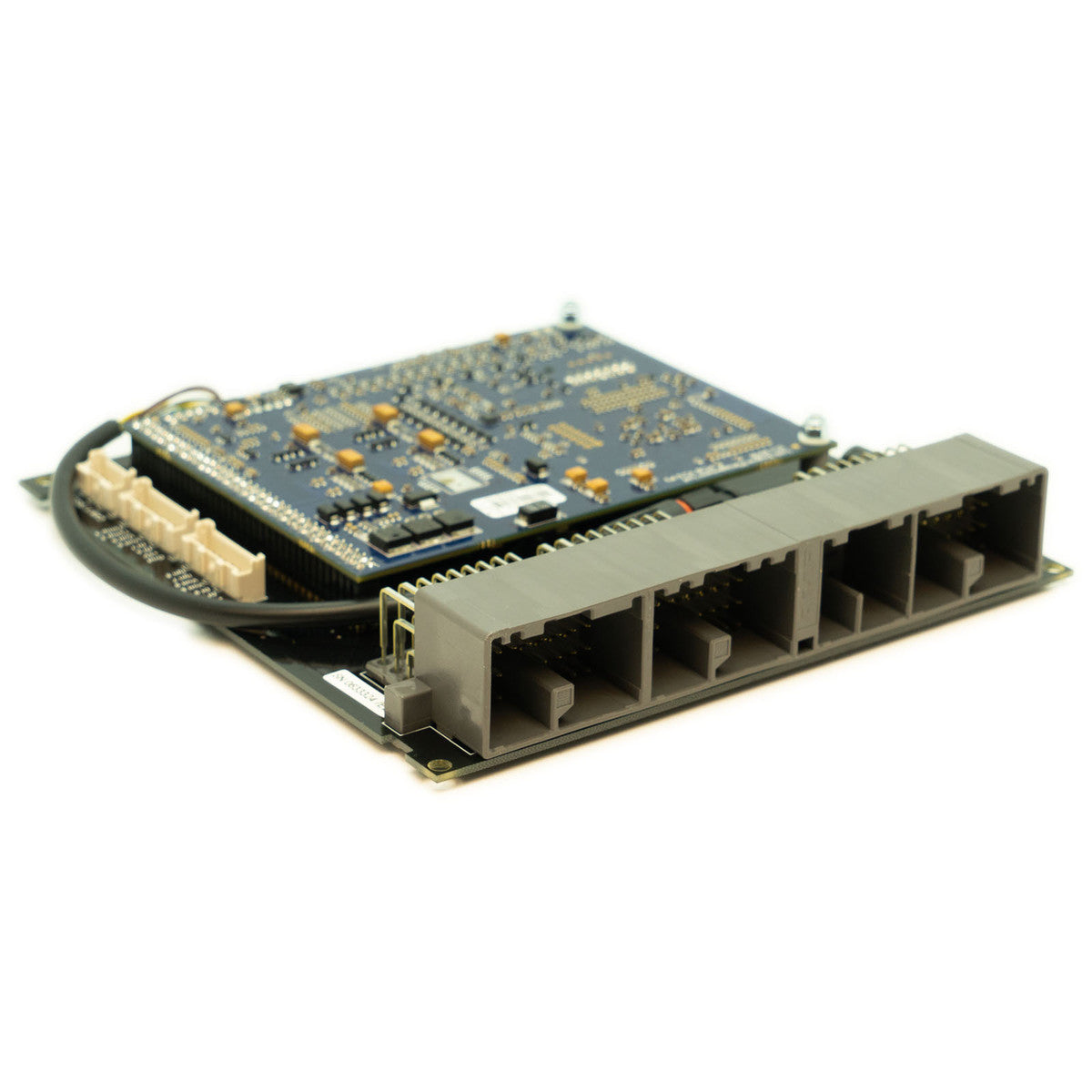

Link Plug In ECU Subaru WRXLink - WRX6X

Link Plug In ECU Subaru WRXLink - WRX6X

Regular price $1,970.00 AUD
Regular price Sale price $1,970.00 AUD
Sale Sold out
Shipping calculated at checkout.

    LEAD TIMES MAY APPLY

    Easy to install. Affordable. Reliable.
    G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
    This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

    Designed for the WRX V5-6 EJ20.

    • Please check your pinout matches the header in the listed photo before purchasing.
    • This ECU works for manual transmissions only.
    • Air temp sensor highly recommended.
    • Most factory features are supported.
    • Check the features tab for I/O expansion options

    Note: V1.4 onwards of this Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection.  Use the CANJST4 (Code 101-0198) cable for connecting CAN devices.  This new 4 pin port and cable provides not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices.  The power supply is protected by a self-resetting fuse rated at 3A continuous.


    Suitable Applications:
    GC8F
    GC8G
    WRX and STI from 09/1998 to 08/00
    MY99 & MY00

    G4X PlugIn Key Features (where applicable):
    Up to 6D fuel and ignition mapping
    Precision closed loop cam control (four cam, independent control)
    Sequential fuel delivery
    Digital triggering, all OEM patterns
    OEM idle hardware supported
    5D boost control with three switchable tables
    Motorsport features - antilag, launch, flat shift
    Continuous barometric correction (on board)
    CAN port
    QuickTune - automated fuel tuning
    Individual cylinder correction
    USB tuning cable included
    Stats recording into on-board memory
    Gear compensations for spark, boost and fuel
    Real time selectable dual fuel, ignition and boost maps
    Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
    Boost control referenced to gear, speed or throttle position
    512 mega bytes data logging memory
    Staged injection
    Knock with "windowing"

    The following expansion connector inputs/outputs are provided:
    XS connector 1
    Gnd                Sensor Ground Only
    +5V Out          Low Current +5V Supply
    DI 8               Digital Input
    DI 9               Digital Input
    An Volt 8        Analog 0-5V input
    An Volt 9        Analog 0-5V input
    Ign 7                Ignition 7 Auxiliary Output
    Ign 8                Ignition 8 Auxiliary Output

    Expansion connector 2
    Gnd                Sensor Ground Only
    +5V Out        Low Current +5V Supply
    DI 5                Digital Input
    DI 7                Digital Input
    An Volt 5        Analog 0-5V input
    An Volt 6        Analog 0-5V input
    An Temp 2        Temperature sensor input
    An Temp 3        Temperature sensor input
