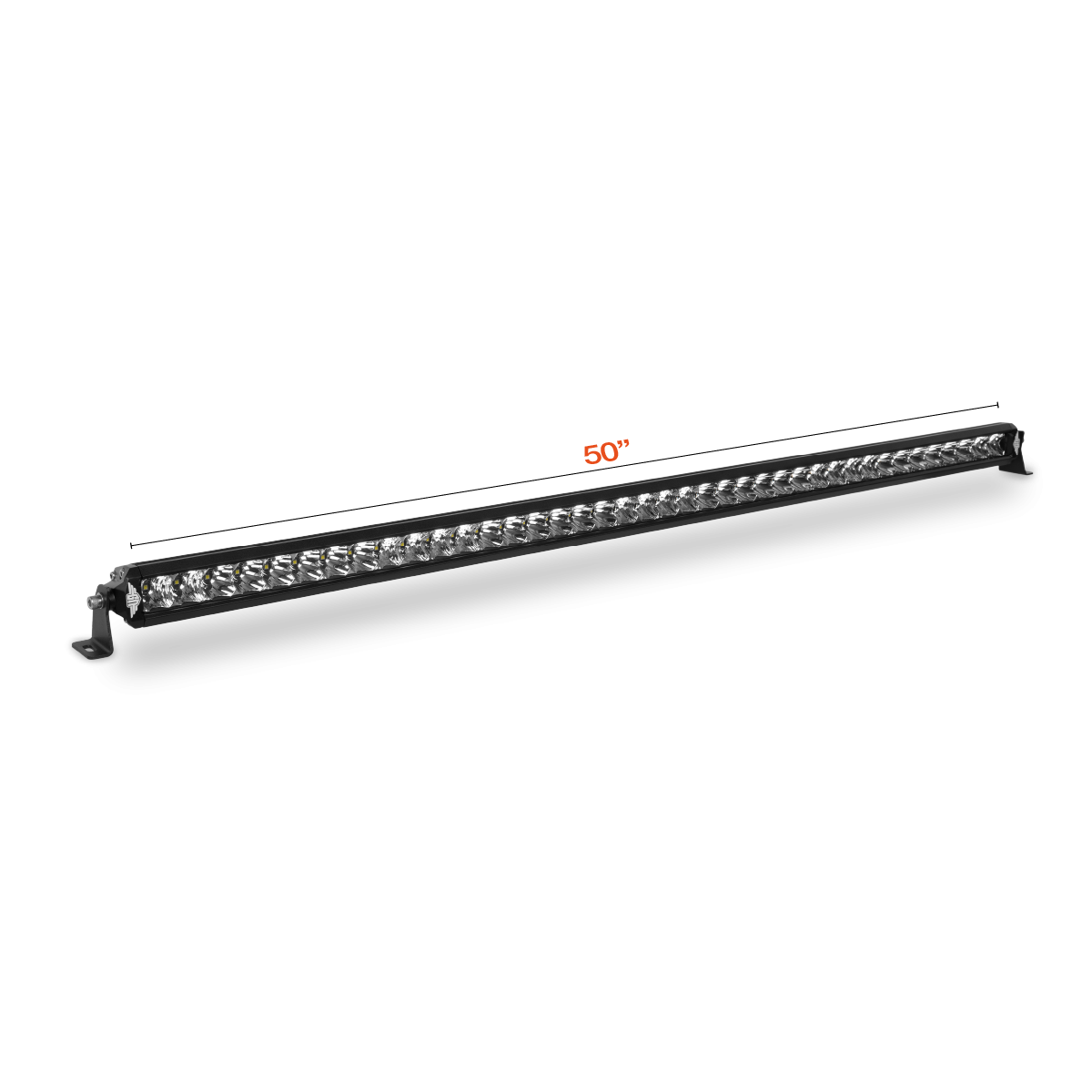

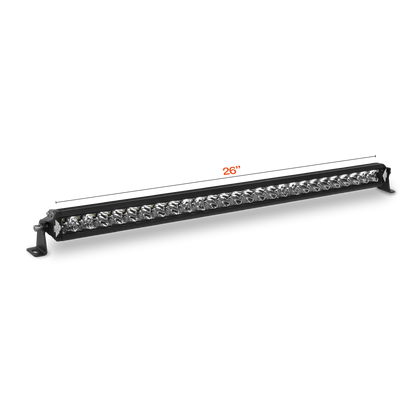

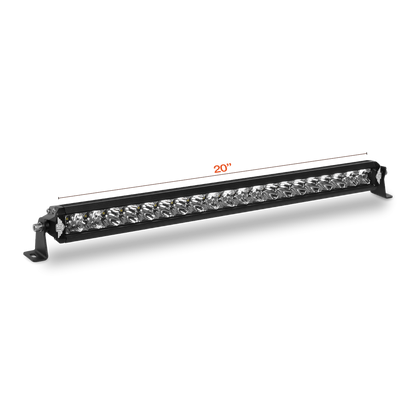

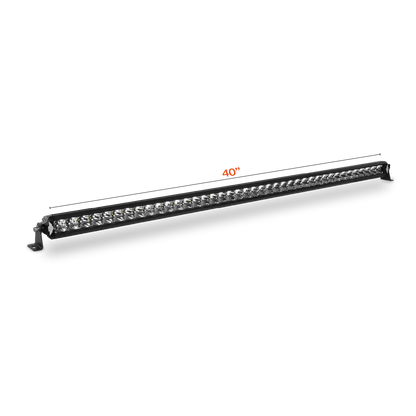

Ultimate9 LED Light Bar's 20" - 50" - Heavy Duty

Face the challenges of the dark with the Ultimate9 LED Light Bars.

Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore^® PolyVents for ultimate housing ventilation.

Encased in high-grade aluminium and protected by impact-resistant Lexan^® Polycarbonate lenses, their rugged construction will last for years to come.

• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
  IP68 for long term submersion and total dust ingress.
  IP69K for stream jet cleaning.

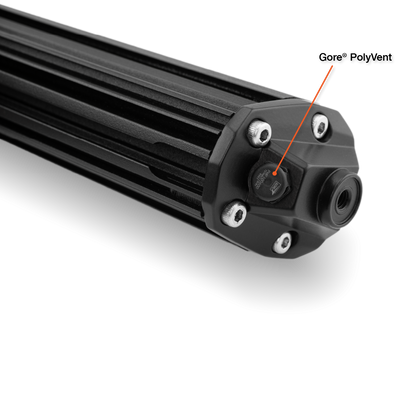

• Ventilation: Gore^® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
• Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont^® coating.
• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
• Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.

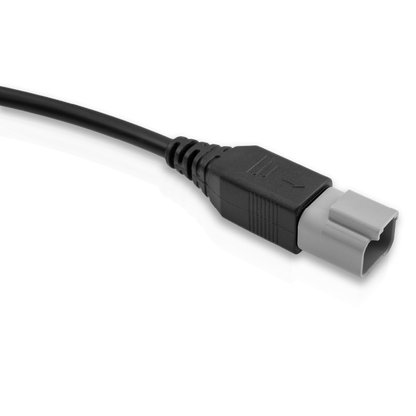

• Technology: Grade A Osram 5W LED chips & sealed DT connectors.

• LED Light Bar

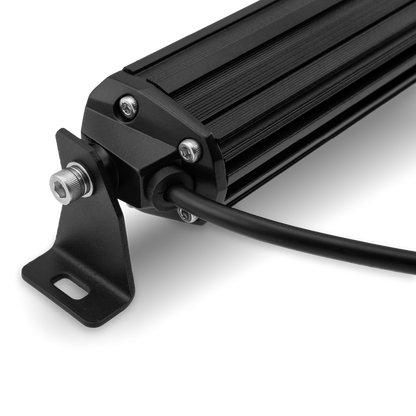

• Side-Mount Brackets & Hardware

Harnesses available separately*

Ultimate9 20", 26", & 30" LED Light Bars, more often fitted at the front of vehicles, utilise our Twin Output Harness.

Note: The Twin Output Harness is capable of powering two 20", 26", or 30" bars.
