Haltech HT-220205 Nexus Rebel JZ ECU – Toyota 1JZ/2JZ Swap Kit

Haltech HT-220205 Nexus Rebel JZ ECU for Toyota 1JZ/2JZ Engines

The Haltech Nexus Rebel JZ is the fastest, easiest way to get a Toyota JZ swap running. It's a complete, purpose-built kit — ECU, terminated harness, sensor pack, and alternator adaptors — designed from the ground up for the JZ platform, with a guided Set-up Wizard in Haltech's NSP software to get you tuning sooner.

Engine Compatibility

• 1JZ-GTE Non-VVT-i
• 1JZ-GE VVT-i
• 1JZ-GTE VVT-i
• 2JZ-GTE Non-VVT-i
• 2JZ-GE VVT-i
• 2JZ-GTE VVT-i

Manual transmissions only – kit is supplied with a harness to suit the R154 transmission.

Key Features

• Guided Set-up Wizard in Haltech NSP software for fast, simple start-up
• Easy-to-install harness engineered specifically for JZ swap applications
• Seamless integration with Haltech dashes, PDMs, sensor kits, and accessories
• Supplied with ignition harness to suit R35 coil conversion (coil kit sold separately, part HT-120200)

What's Included

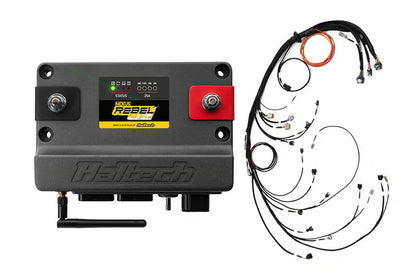

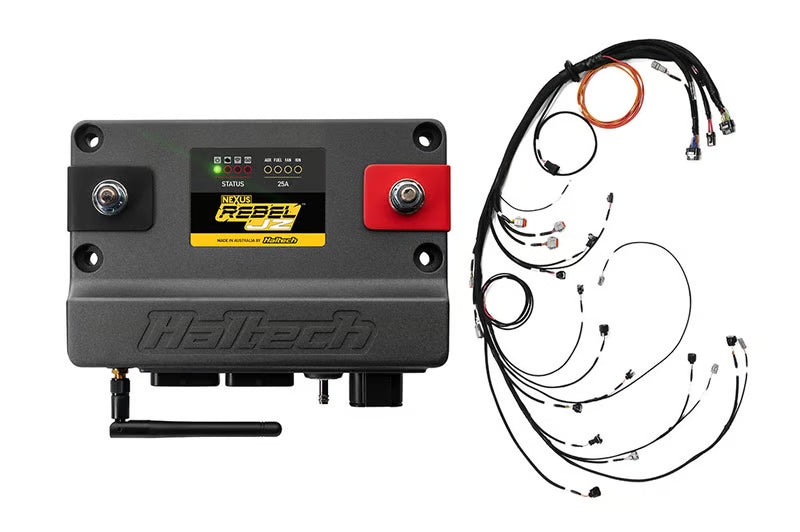

• HT-220002 – Nexus Rebel JZ ECU
• HT-186400 – Nexus Rebel JZ main terminated harness

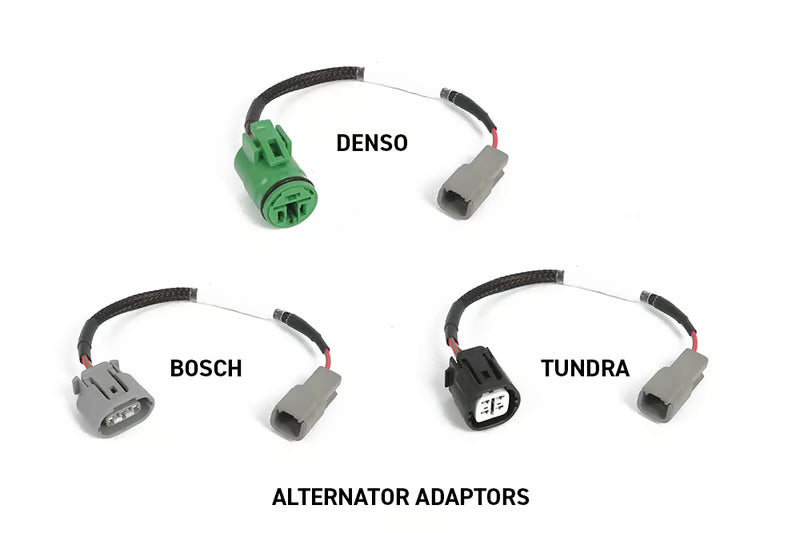

• HT-186120 – Denso alternator harness
• HT-186121 – Bosch alternator harness
• HT-186122 – Tundra alternator harness

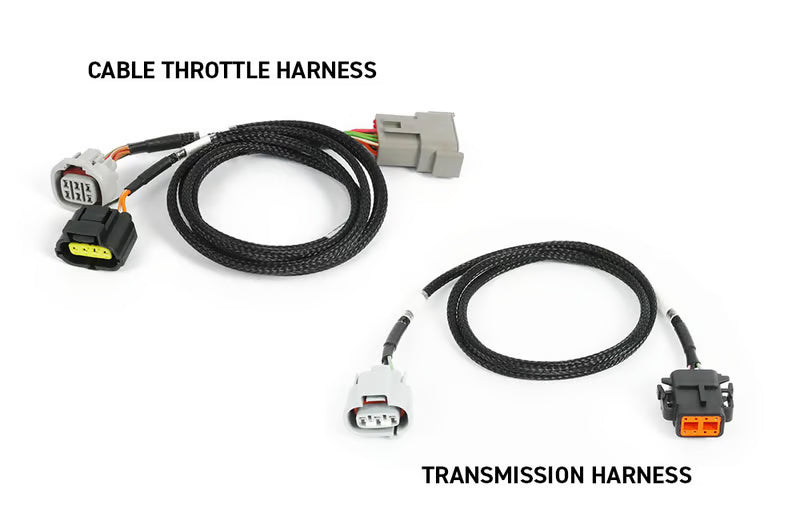

• HT-187005 – Toyota R154 transmission harness
• HT-186160 – Nexus Rebel JZ cable throttle sub-harness

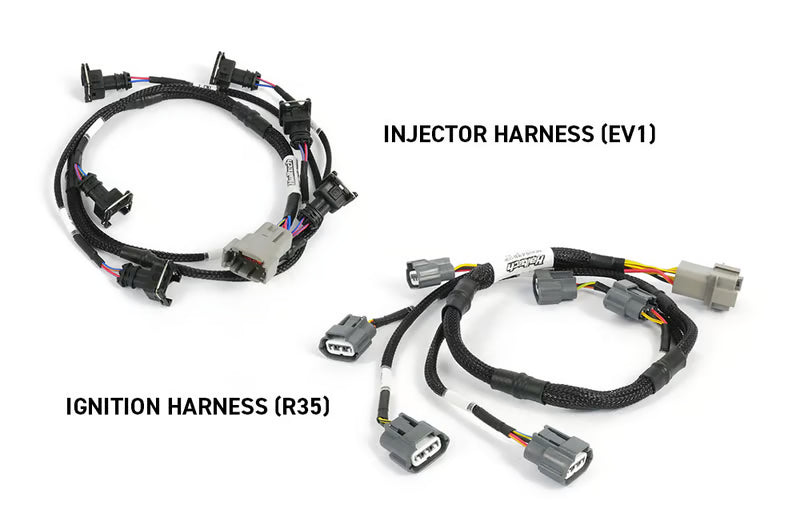

• HT-186004 – i6 Timer (EV1) primary injector harness
• HT-186063 – i6 R35 COP ignition harness

Sensor Pack Included

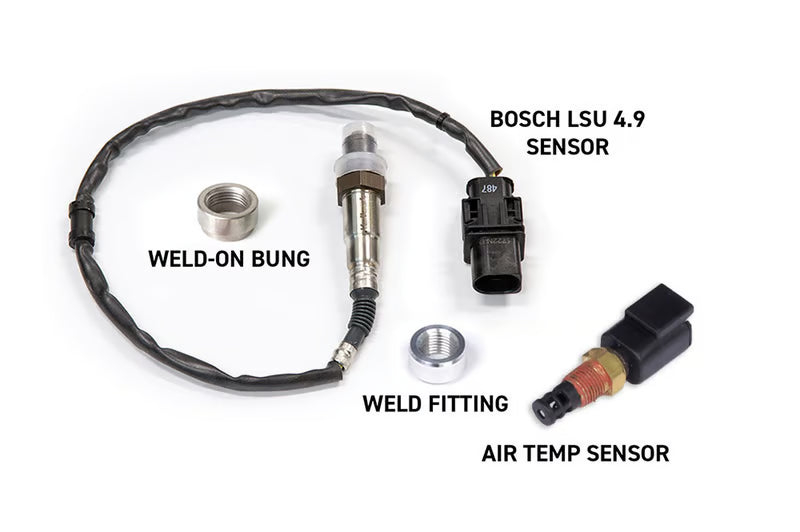

• Bosch LSU 4.9 wideband O2 sensor
• Weld-on fitting for O2 sensor
• Air temperature sensor, M14 x 1.5
• Weld-on fitting for air temp sensor
• 2 x Bosch knock sensors and adaptors
• 1 x 150 PSI fuel and oil pressure sensor
• 1 x 1/8 BSPT male to 1/8 NPT female adapter (oil pressure sensor fitting)

Not Supported

Toyota Electronic Throttle Control System – Intelligent (ETCS-i, aka semi DBW), distributor ignition systems, wasted spark ignition systems, low impedance injectors, sequential twin turbo setups, and the factory 1JZ coolant temperature sensor.

Why Choose the Nexus Rebel JZ?

Instead of piecing together a JZ swap from a dozen separate parts, the Rebel JZ is engineered as one cohesive kit — ECU, harness, sensors and adaptors all designed to work together from day one. That means fewer compatibility questions, a faster install, and a tuning-ready platform backed by Haltech's NSP software and support network.

Frequently Asked Questions

Does this support automatic transmissions?
No, the Rebel JZ kit supports manual transmissions only, with a harness suited to the R154 gearbox.

Do I need to buy anything separately?
The core kit includes everything needed for the engine and transmission side. The R35 coil conversion kit (HT-120200) is sold separately if your engine doesn't already run R35 coils.

Can I tune it wirelessly?
Yes, the Nexus platform supports Wi-Fi connectivity for tuning and monitoring via the Haltech Connect App and NSP software.

Will it support a twin turbo setup?
Sequential twin turbo setups are not supported. Single turbo and twin-parallel configurations are supported.
