Haltech NEXUS REBEL LS ECU – Gen 4 LS Engine Control

Haltech NEXUS REBEL LS ECU – Gen 4 LS Engine Control

HT-220204

$2,490.00 AUD
$2,490.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Authorised Haltech dealer
  • Fast Shipping Australia Wide
  • Real fitment advice

Haltech Nexus Rebel LS ECU – Gen 4 LS (58x/4x) – HT-220204

The Haltech NEXUS REBEL LS ECU – Gen 4 is a powerful standalone engine control solution built specifically for GM Gen 4 LS engines using 58x crank and 4x cam triggers. It offers seamless integration and advanced functionality, making it ideal for high-performance street cars, race builds, and LS swaps.

Key Features

  • Supports Gen 4 LS (58x/4x) engines
  • Native Drive-by-Wire (DBW) throttle control
  • Dual CAN channels for integration with digital dashes, PDUs, etc.
  • Integrated boost control, flex fuel, and engine protection strategies
  • Direct plug-in compatibility with REBEL wiring systems
  • USB tuning via Haltech NSP software

Designed for builders who want OEM-level control with motorsport-grade flexibility.

Kit Includes

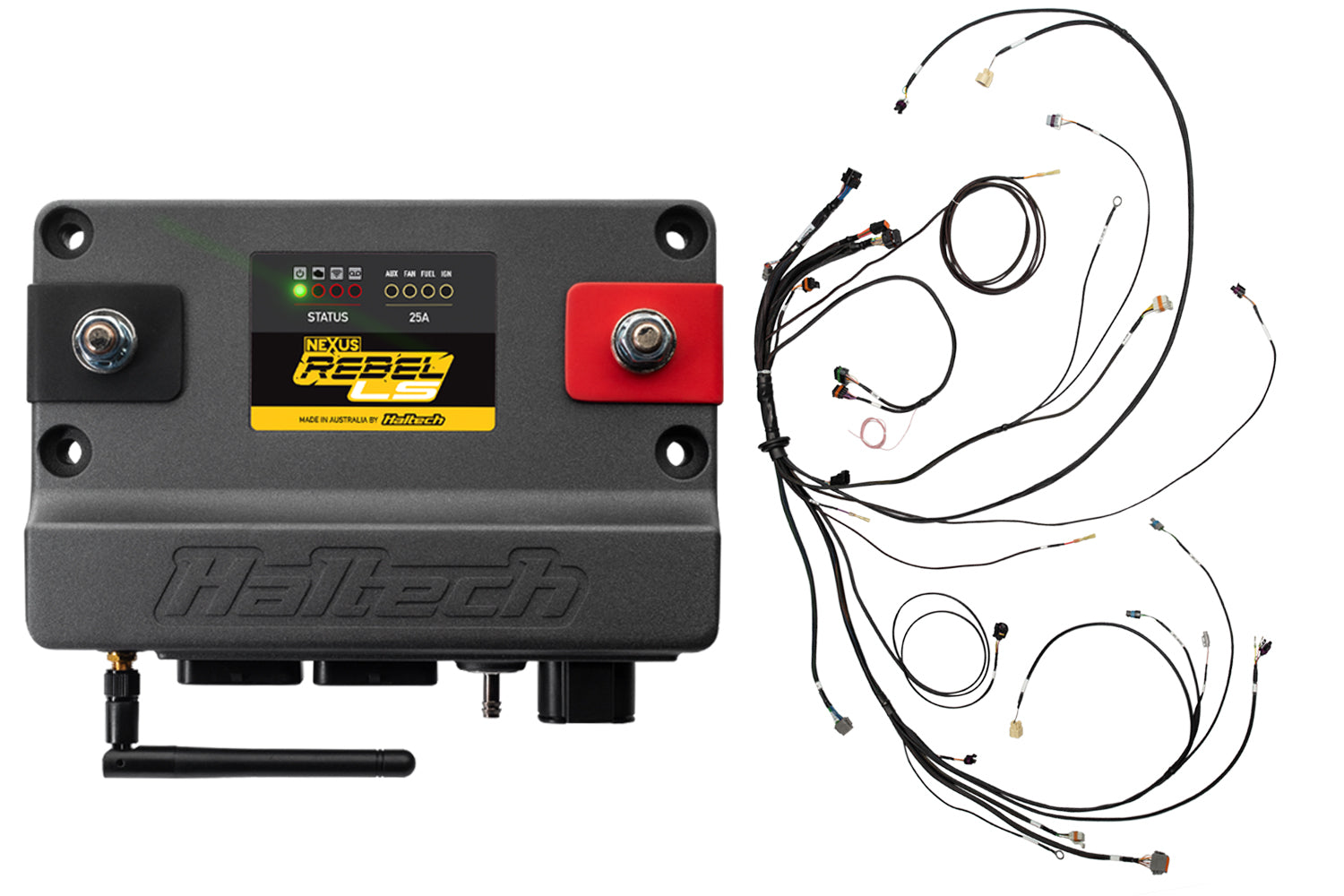

  • HT-220001 – Rebel ECU
  • HT-186500 – Main Harness

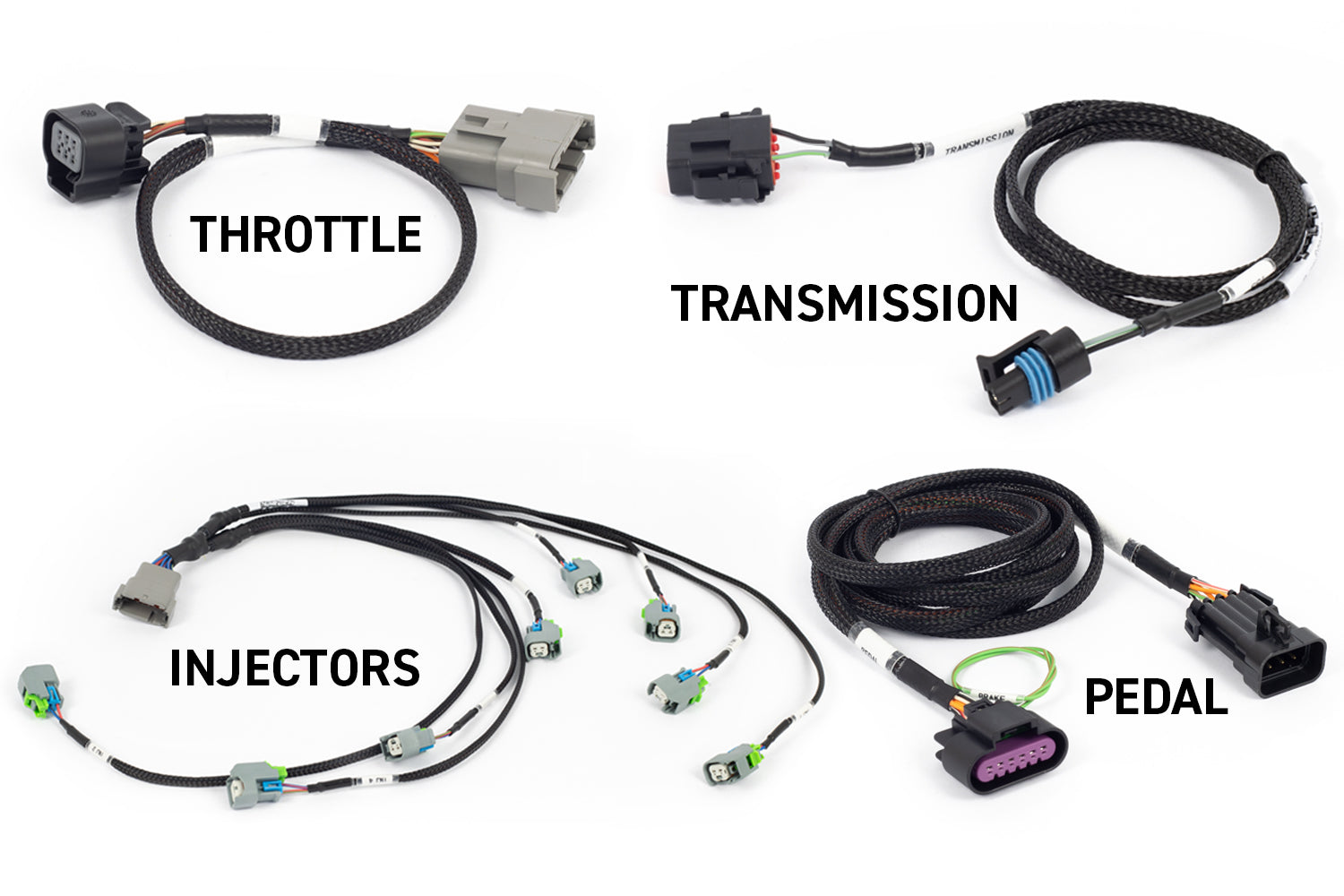

  • HT-186505 – 6 Pin DBW Adaptor
  • HT-186507 – Corvette pedal adaptor
  • HT-186502 – LS EV6 Injector Sub-Harness
  • HT-187003 – T56 Transmission Harness

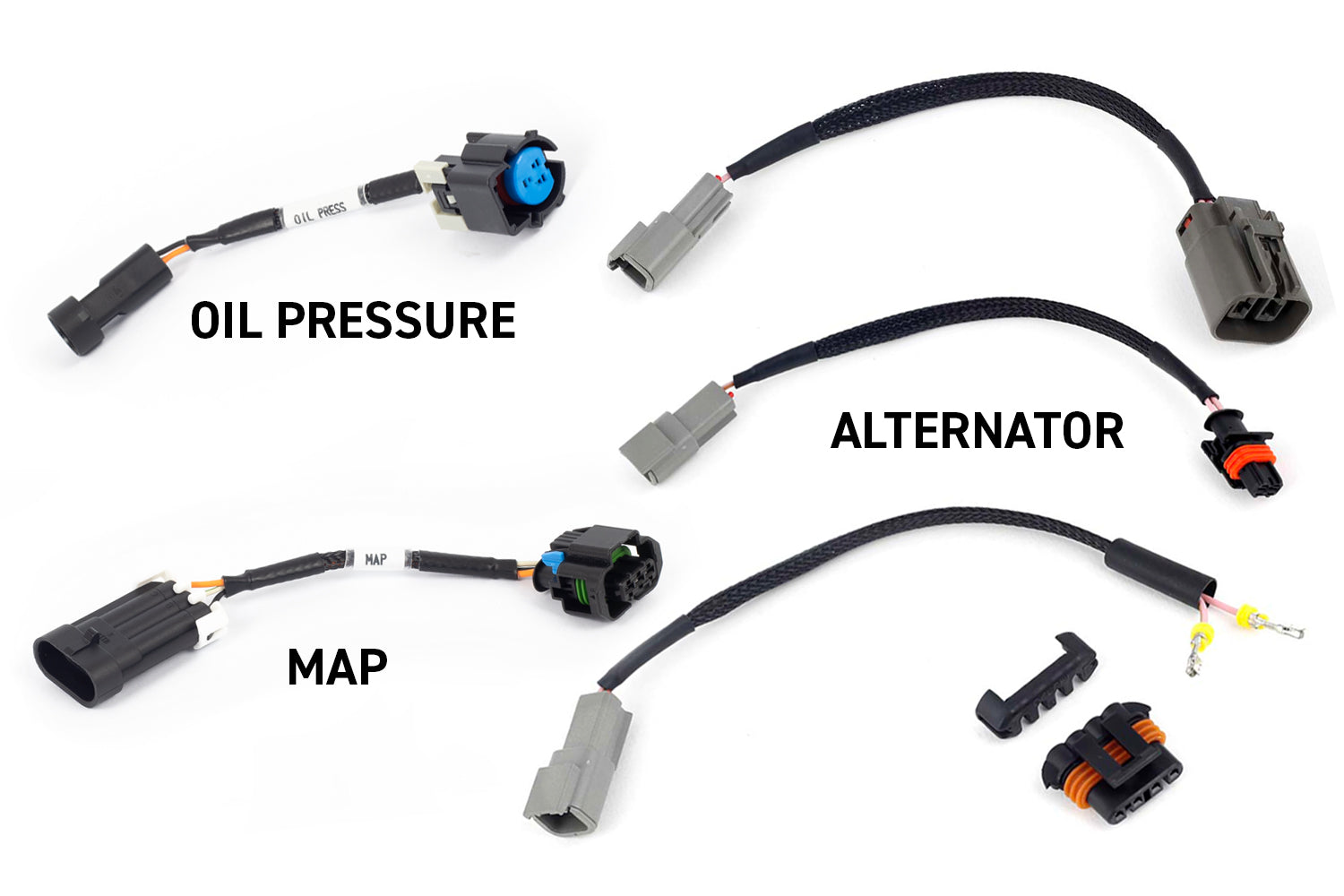

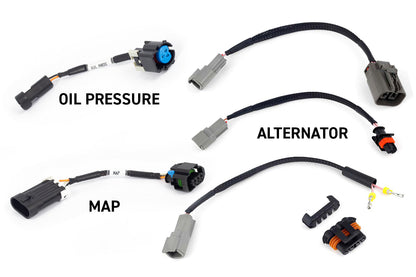

  • HT-186123 – 2 Pin Bosch Alternator Harness
  • HT-186124 – 4 Pin Delco Alternator Harness
  • HT-186125 – 2 Pin Yazaki Alternator Harness
  • HT-186510 – Gen IV Oil pressure sensor adaptor harness
  • HT-186511 – Gen IV MAP sensor adaptor harness

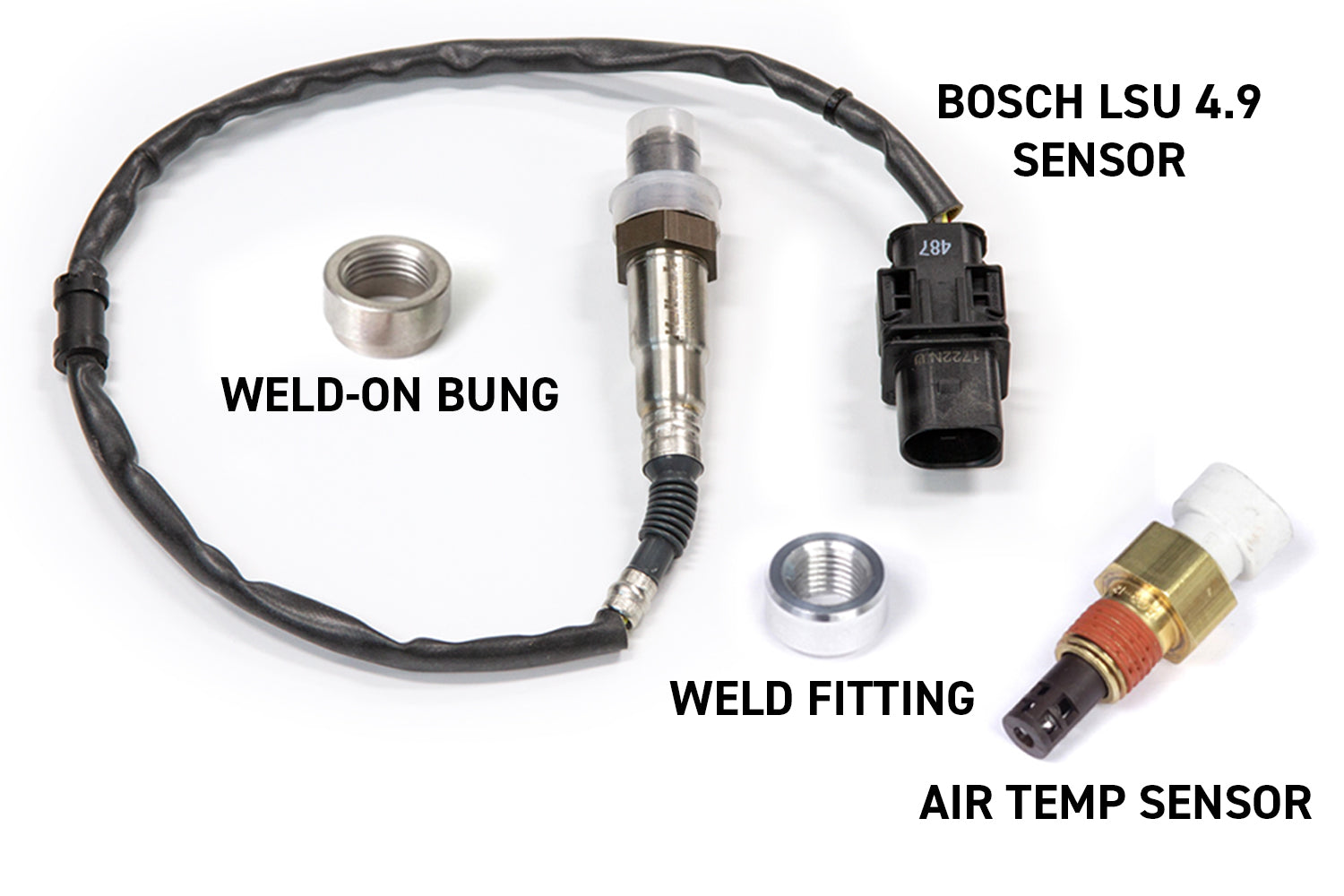

Sensor Pack

  • Bosch LSU 4.9 Sensor
  • Weld-on fitting for O2 Sensor
  • Air Temperature Sensor M14 x 1.5
  • Weld-on fitting for Air Temp Sensor

Frequently Asked Questions

Which LS engines does this kit suit?
GM Gen 4 LS engines using 58x crank and 4x cam triggers. For Gen 3 (24x/1x) engines, see the Nexus Rebel LS Gen 3 kit.

Does it support drive-by-wire throttle?
Yes – native DBW control with the included 6-pin DBW adaptor and Corvette pedal adaptor.

What software is used for tuning?
Haltech NSP (Nexus Software Programmer), connected via USB.
