Aim | Link MXT Strada 10" Dash – Race Edition Display

Race-ready LINK MXT Strada 10" Dash with vivid display, CAN integration, shift lights & GPS. Ideal for serious motorsport and tuning setups.

They are exactly the same as AIM MXT

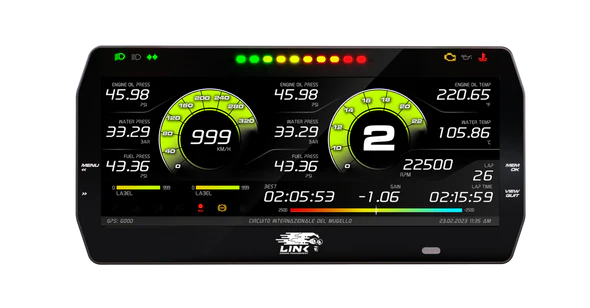

The Link MXT Strada Race Edition dash features customisable shift lights, six alarm LEDs and a high contrast 10-inch TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The 10 multi-coloured RGB shift lights on the MXT Strada can be customised to your liking to define the RPM threshold for each single gear.

The same flexibility applies to the six configurable RGB alarm LED's. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information (GPS module available). You choose conditions and colours and you can select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information readings from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The Link MXT connects directly to your Link ECU over CAN using via the pin kit and wiring provided in the box.

The dash can be personalised and configured using Link’s PCLink and Aim Technologies Race Studio 3 software (Both free downloads).

Included in the box:
Link MXT Strada 10-inch Dash
USB cable
14 pin standard wiring
23 pin connector + contacts

GPS module available separately.

Power consumption: 400 mA

Dash Dimensions: 278 X 135 X 43.2mm

Weight: 1200 g

Waterproof: IP65
