Haltech Elite 550 + Premium Universal Wire-in Harness Kit

Haltech Elite 550 + Premium Universal Wire-in Harness Kit

HT-150404

$1,864.99 AUD
$1,864.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Authorised Haltech dealer
  • Fast Shipping Australia Wide
  • Real fitment advice

Haltech Elite 550 + Premium Universal Wire-in Harness Kit

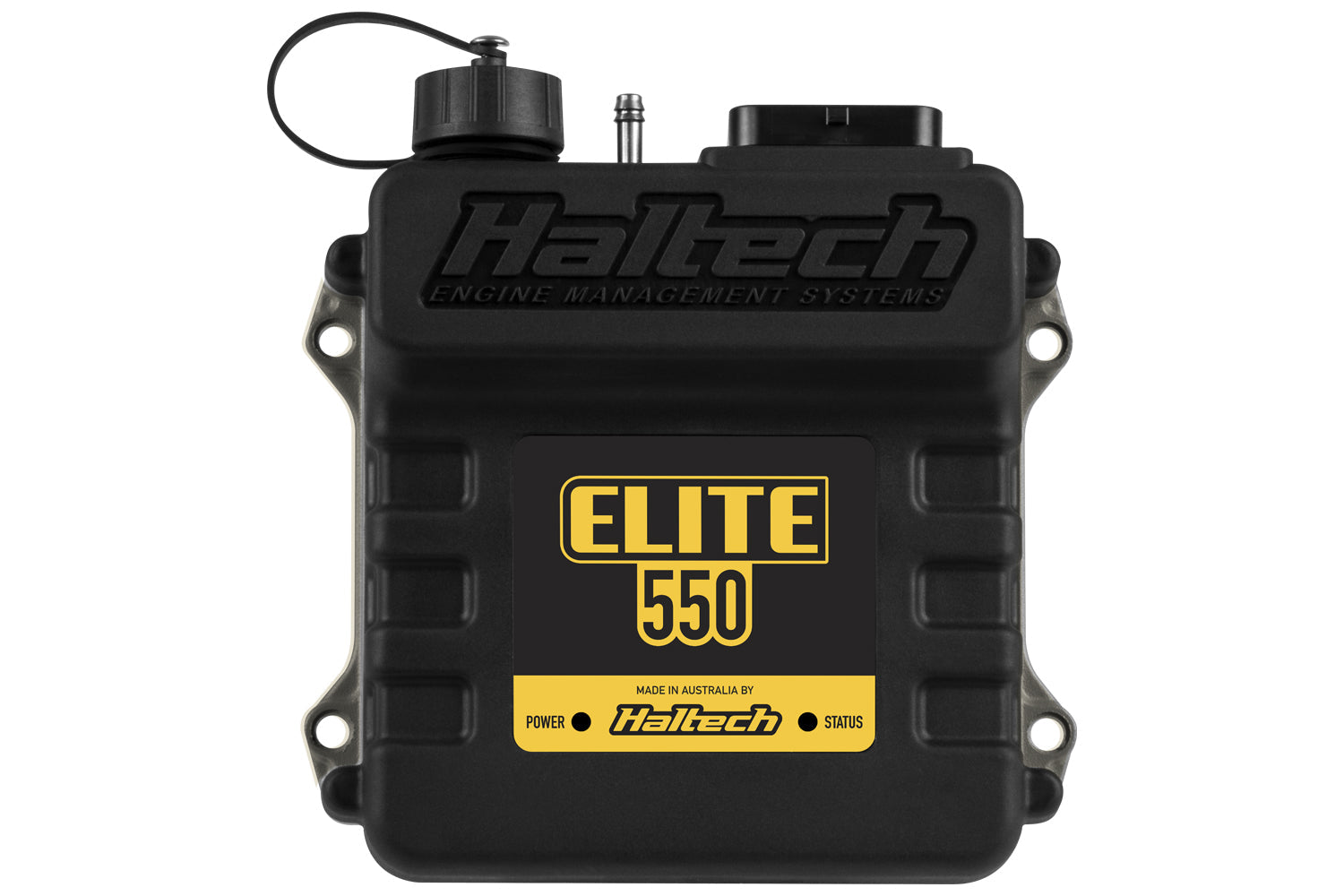

The Elite 550 is a simple yet powerful ECU ideal for basic 4 to 8-cylinder or 1-2-rotor engine applications. Suitable for either naturally aspirated or forced induction engines, the Elite 550 gives full control over fuel delivery, ignition timing and boost levels. This robust, competitively priced ECU features an environmentally sealed, waterproof case, 4 fuel and 4 ignition channels and a 4 Bar internal MAP sensor. The Elite 550 is paired with the Nexus Software Programmer (NSP) for cutting-edge tuning functionality.

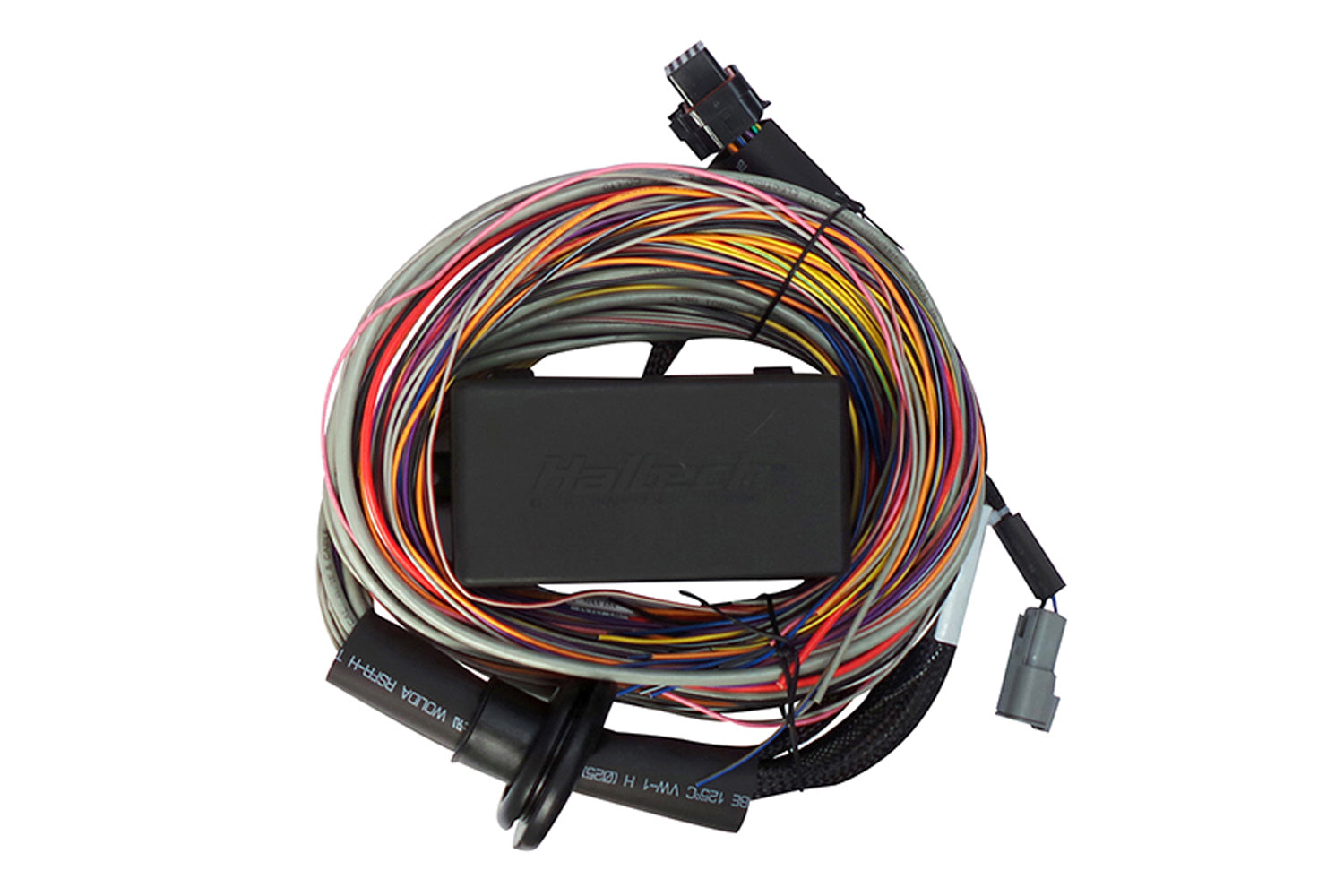

Harness: Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other, all colour coded and clearly labelled to match the detailed wiring diagram for a confusion-free installation. Connect your Haltech ECU, follow the wiring diagram for all engine connections, load your base map and you're ready to go.

Outputs: Up to 4 injector and 4 ignition.

Suits: Universal 1-8 cylinder or 2 rotor applications.

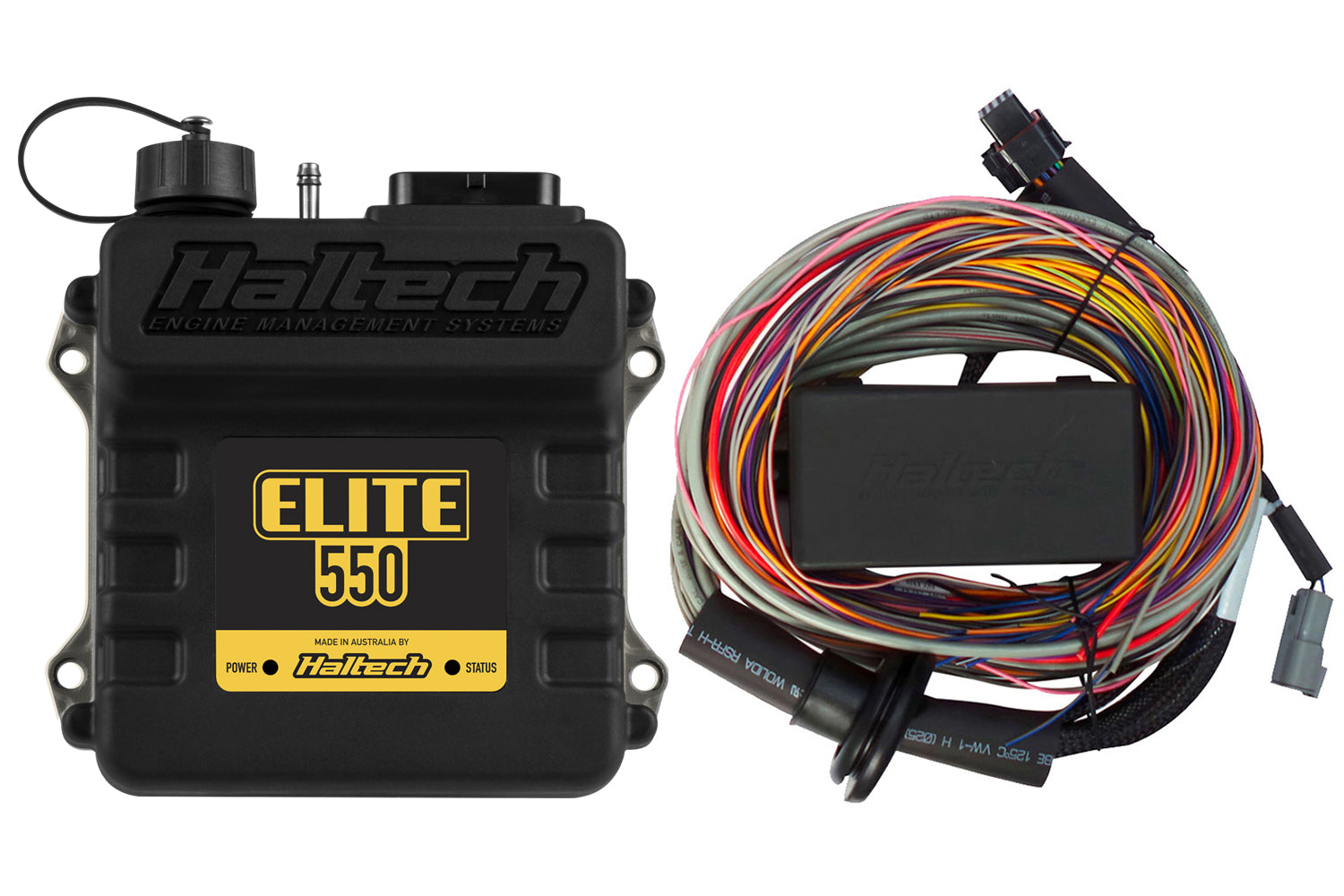

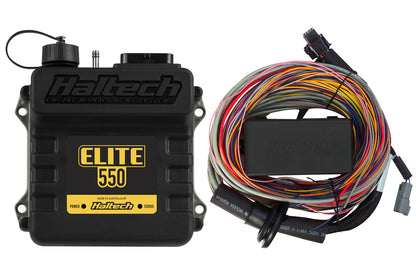

Includes: Elite 550 ECU, Premium Universal Wire-In Harness (2.5m/8'), firewall grommet, moulded 6 power circuit Haltech fuse box and lid, 2 relays, 4 fuses and pins for the 4 spare power circuits, waterproof USB cap, USB programming cable.

Notes: Haltech's entry level, single connector ECU kit. Ideal for basic 4 cylinder or 2 rotor engine applications and basic EFI conversions.

Key ECU features:

  • Supports 1 to 8 cylinder engines, 1 to 2 rotor engines
  • Normally aspirated or forced induction
  • Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
  • Sequential, semi-sequential, batch or multipoint injection patterns
  • Direct fire multi-coil, distributor ignition, or Haltech CDI systems
  • Connects to a wide range of dashes, displays and expansion devices via CAN
  • 4 x fuel injection outputs; 4 x ignition outputs
  • 2 x dedicated engine position inputs with extensive trigger type support
  • 1 x digital pulsed input; 5 x digital pulsed outputs; 1 x analogue voltage input
  • 3 x dedicated inputs (Throttle Position, Coolant Temperature & Air Temperature)
  • Internal 4 Bar MAP sensor measuring up to 300kPa/3Bar/45psi of boost pressure
  • Up to 33 channels of I/O expansion (via CAN); USB laptop communication (Windows)
