Haltech Elite 750 + Basic Universal Wire-in Harness Kit

Haltech Elite 750 + Basic Universal Wire-in Harness Kit

HT-150602

$2,039.00 AUD
$2,039.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Authorised Haltech dealer
  • Fast Shipping Australia Wide
  • Real fitment advice

Haltech Elite 750 + Basic Universal Wire-in Harness Kit

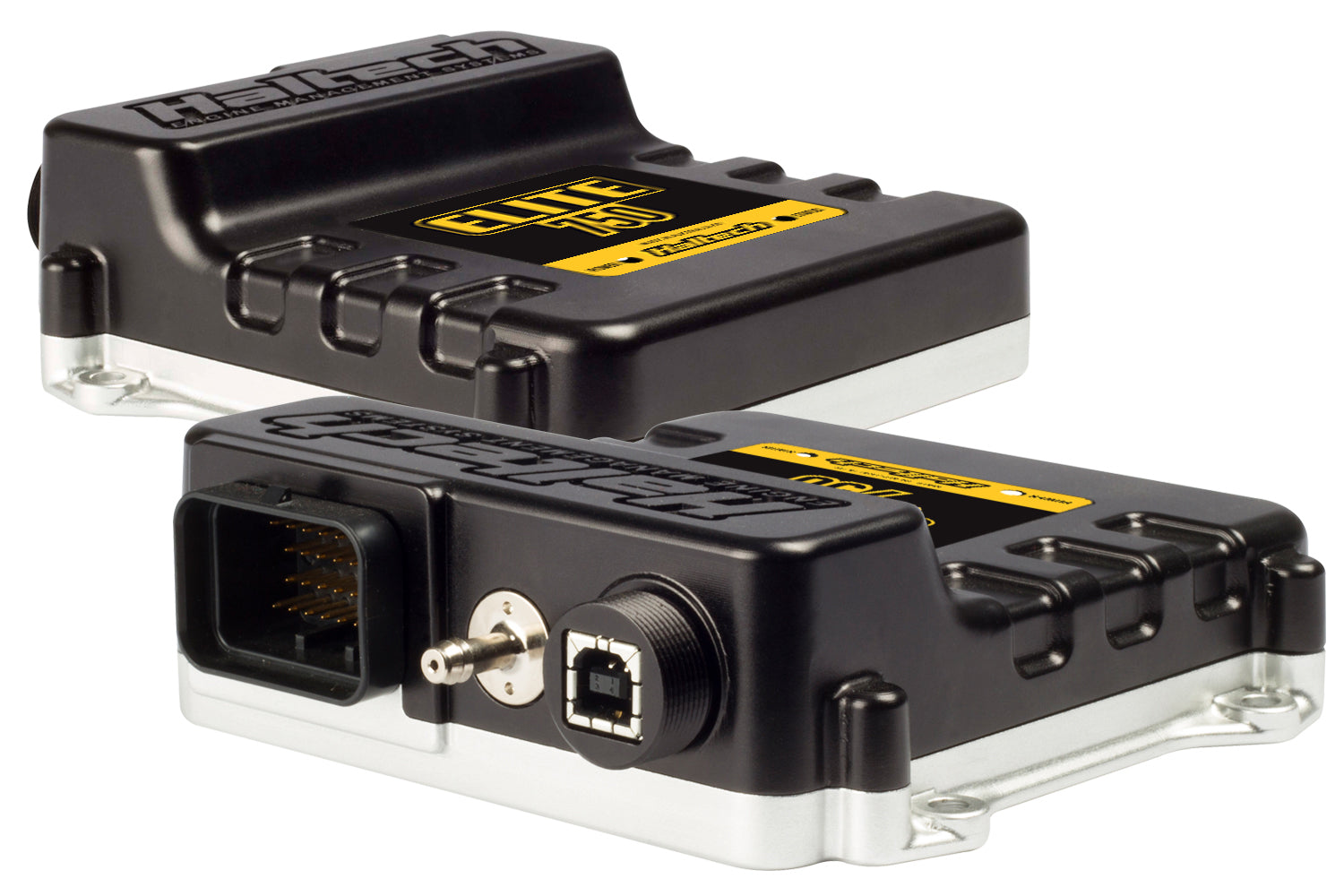

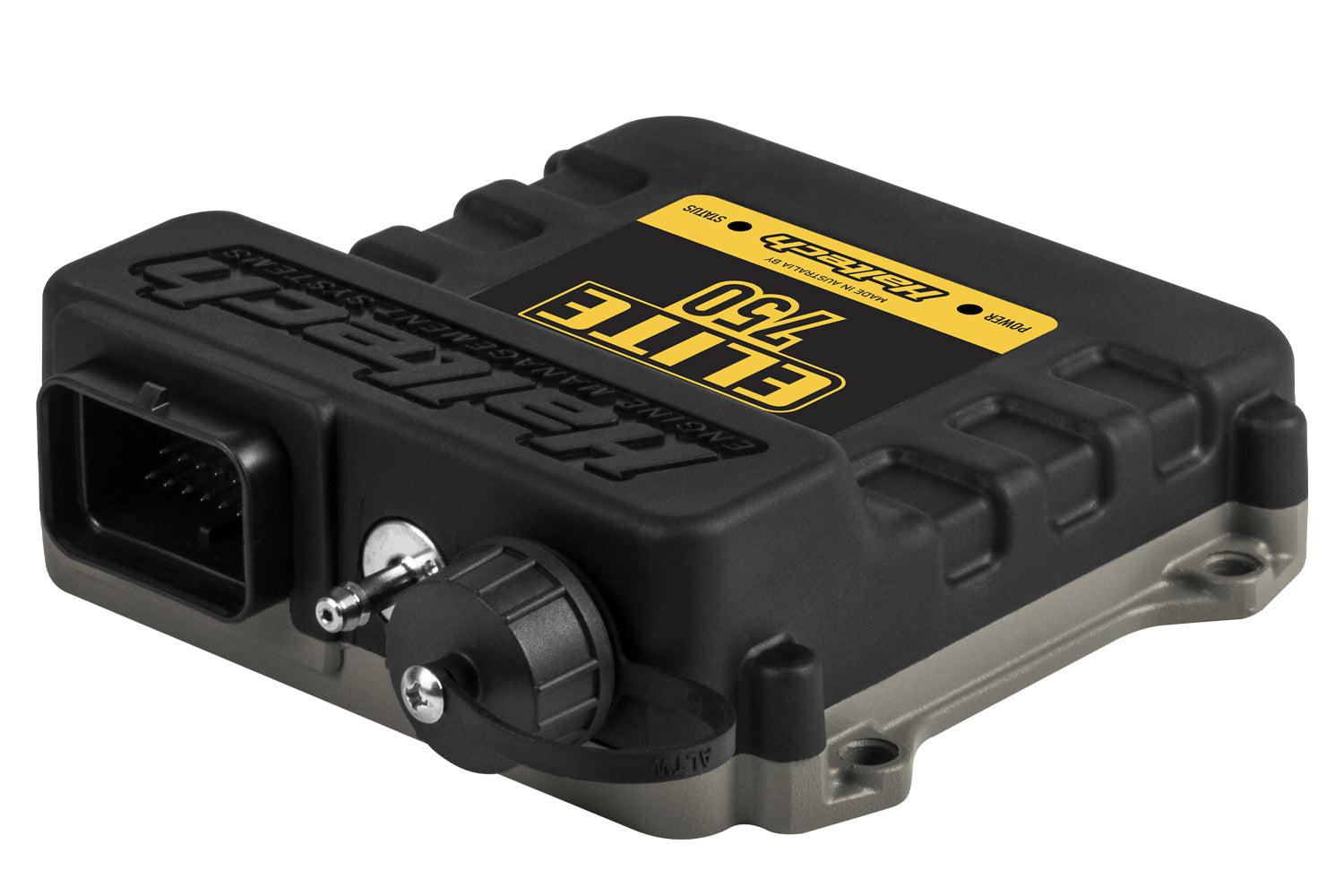

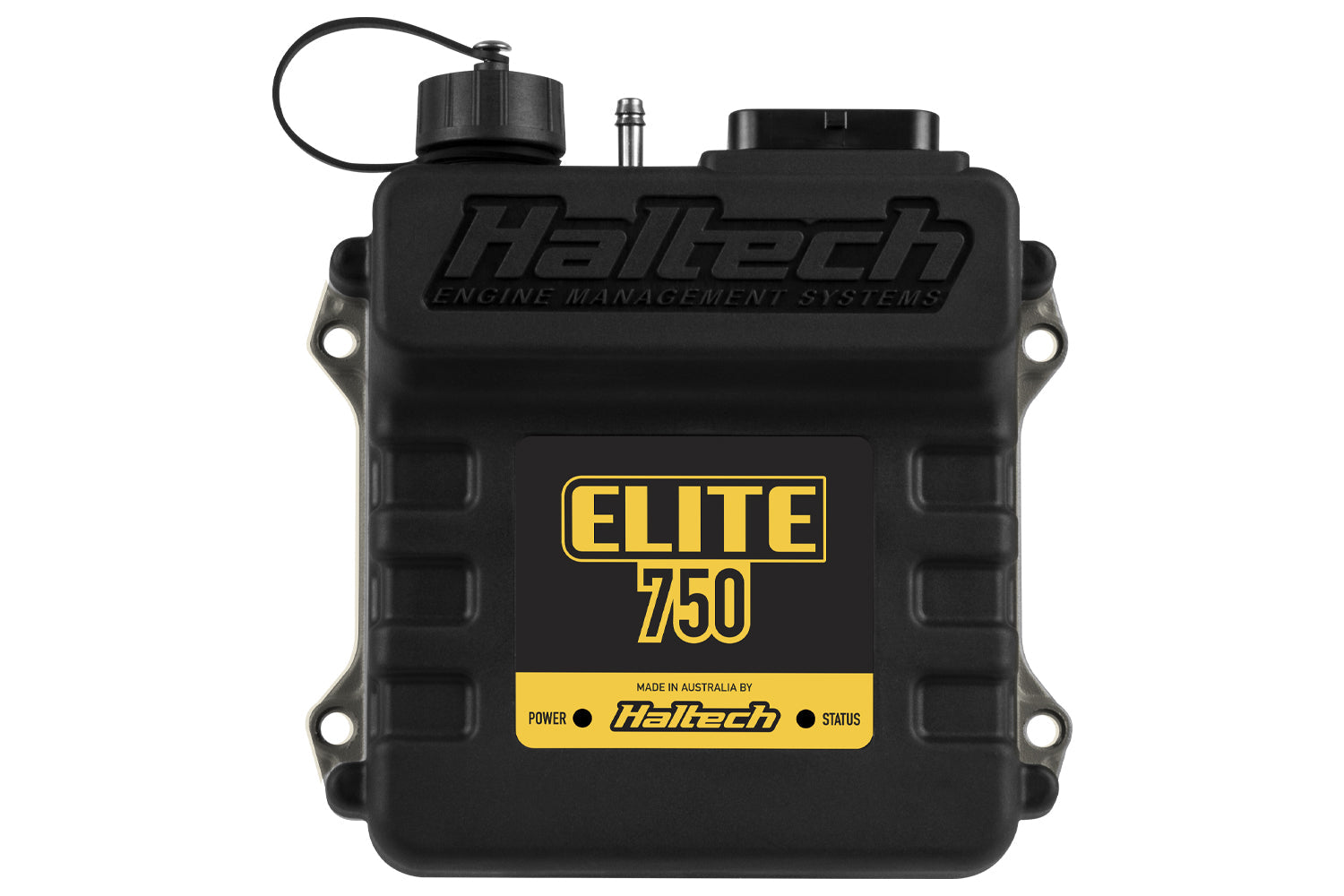

The Elite 750 is an entry-level ECU offering many features available on the more advanced Elite 1500/2500 at an affordable price. Featuring a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging and flex fuel tuning, the Elite 750 is a powerful, compact ECU. Like all Elite Series ECUs, the Elite 750 now uses the Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package.

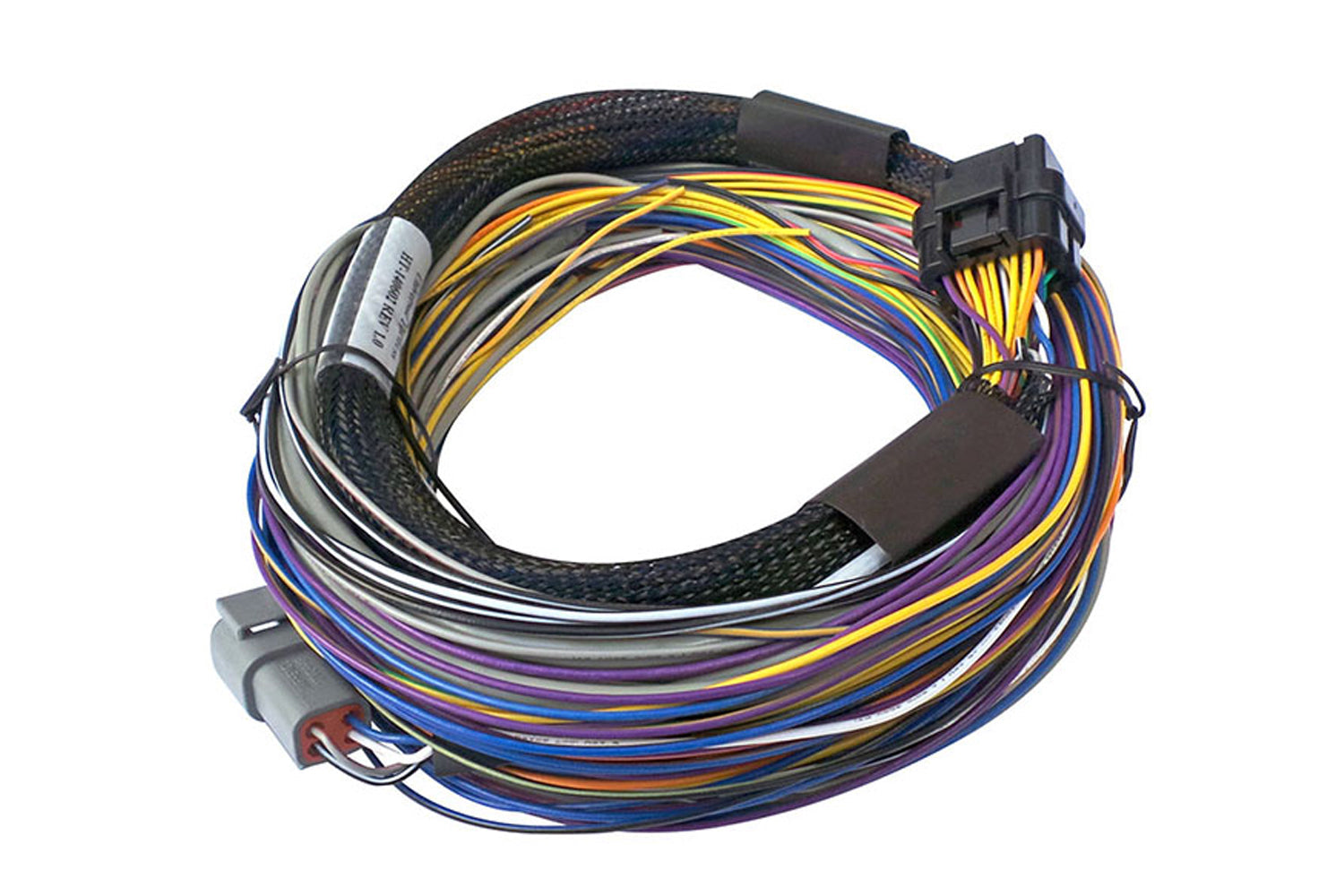

Harness: Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other, all colour coded and clearly labelled to match the detailed wiring diagram for a confusion-free installation. Connect your Haltech ECU, follow the wiring diagram for all engine connections, load your base map and you're ready to go.

Outputs: Up to 6 injector and 6 ignition.

Suits: Universal 1-12 cylinder or 2-3 rotor applications.

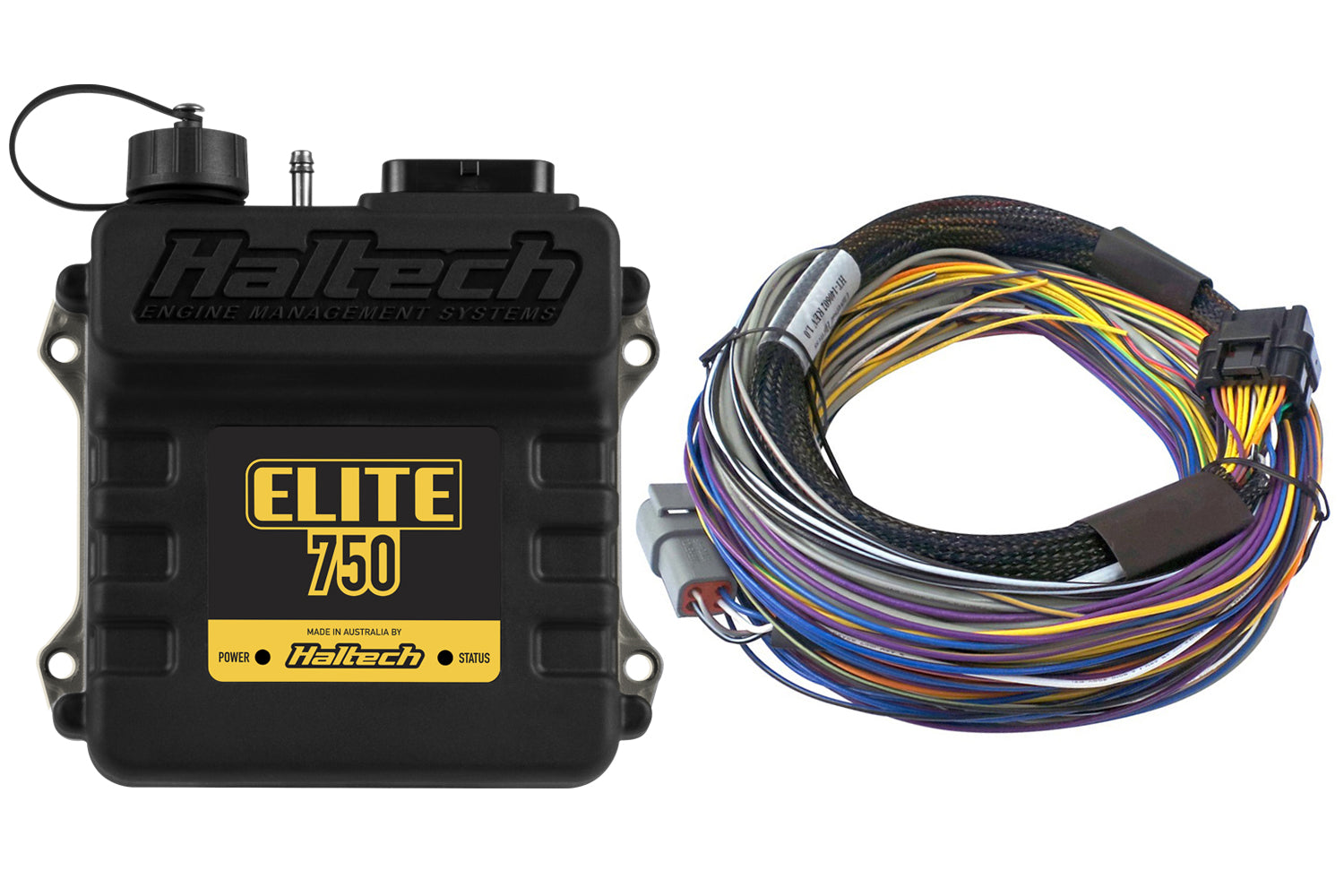

Includes: Elite 750 ECU, Basic Universal Wire-In Harness (2.5m/8'), waterproof USB cap, USB programming cable.

Notes: Single connector ECU kit ideal for basic 6 cylinder or 2 rotor engines, basic EFI conversions, single VVTi engines. Does not include fuse and relay box.

Key ECU features:

  • Supports 1 to 12 cylinder engines, 1 to 3 rotor engines
  • Normally aspirated or forced induction
  • Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
  • Staged, sequential, semi-sequential, batch or multipoint injection patterns
  • Distributor ignition systems, multi-coil systems, expanded CDI range or Haltech Multiplex CDI systems
  • Connects to a wide range of display dashes and expansion devices via CAN
  • 6 x fuel injection outputs; 6 x ignition outputs
  • 2 x dedicated engine position inputs with extensive trigger type support
  • 2 x digital pulsed inputs; 5 x digital pulsed outputs; 2 x analogue voltage inputs
  • 3 x dedicated inputs (Throttle Position, Coolant Temperature & Air Temperature)
  • Internal 3 Bar MAP sensor rated up to 200kPa of boost (2Bar/29psi)
  • Up to 45 channels of I/O expansion (via CAN); USB laptop communication (Windows); on-board data logging
